Gallery: S12AT - SURROUND CHANNEL

Overview

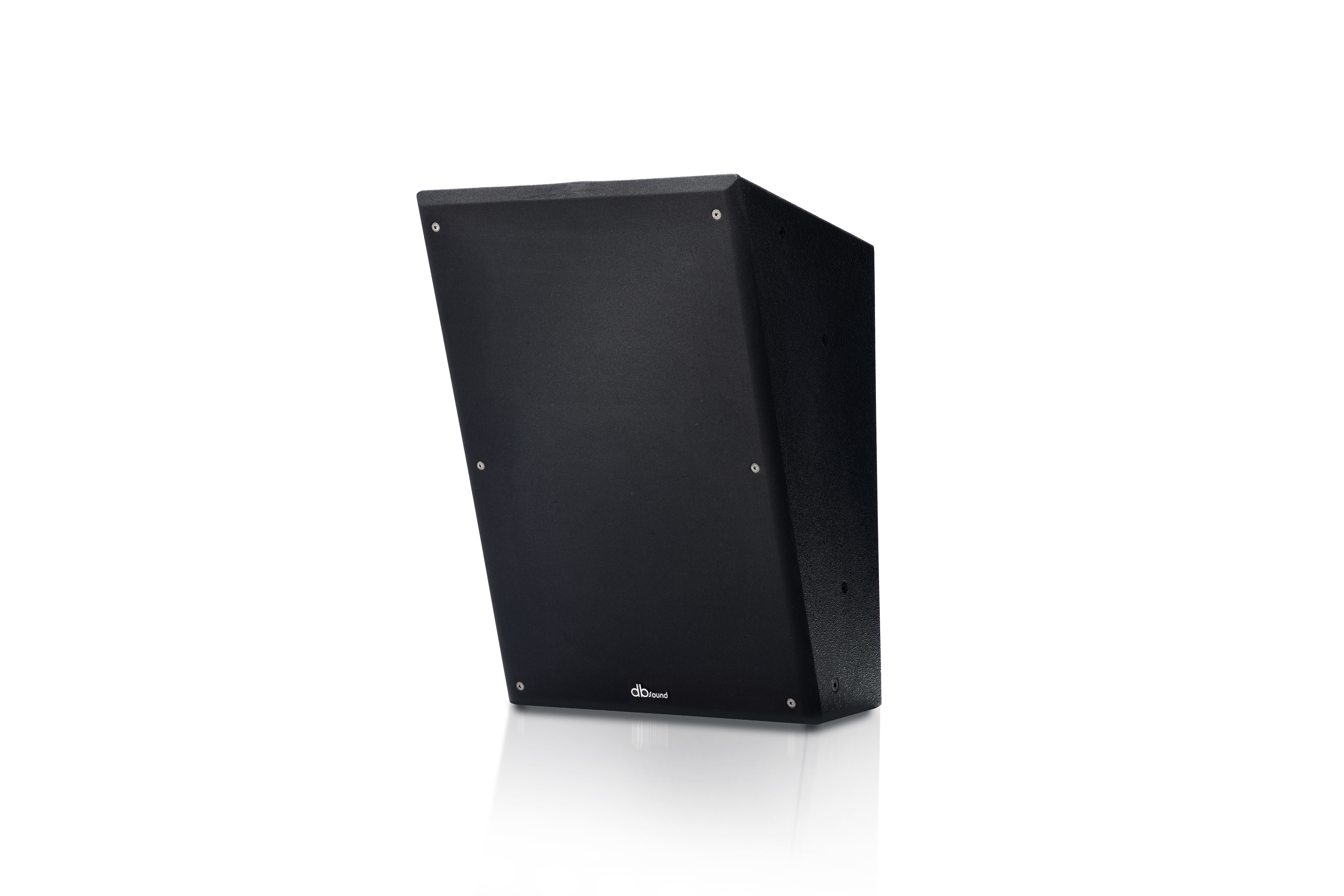

Composition: 1 × S12AT Cinema Surround Speaker System

The S12AT introduces premium European engineering to our range, incorporating world- class Beyma drivers from Spain. Purpose - built to unleash the full cinematic drama of wide and overhead channels, this high - performance, two- way passive loudspeaker effortlessly handles massive commercial spaces up to 80 feet wide.Pairing a high - power 12 - inch low - frequency driver with a 1.4-inch exit compression driver yields exceptional sound pressure levels alongside absolute acoustic transparency.Enclosed in a dual- ported, braced cabinet, its custom 80° x 50° horn guarantees immaculate directivity control while suppressing unwanted reflections—delivering a masterclass in spatial precision for Dolby Atmos, Dolby 7.1, and DTS:X installations.

Features

Dolby Surround 7.1 Ready
Dolby Surround 7.1 Ready
Dolby Atmos Ready
Dolby Atmos Ready
DTS:X Ready
DTS:X Ready
Powered By Beyma
Powered By Beyma
Screen Width: Up to 80 ft
Screen Width: Up to 80 ft

Applications

Cinemas
Multiplexes
Megaplexes
PLF Screens
Surround Channels
Overhead Channels

Warranty

Product Warranty

3 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
S12AT
Configuration
Two-Way Cinema Surround System
Frequency Range
45 Hz to 19 KHz
Sensitivity
110 dB
Maximum SPL
137 dB
Nominal Impedance
8 Ohms
Coverage Pattern
80° H × 50° V
Crossover Frequency
2300 Hz
Connectors
4 Pin Barrier Terminal Block Connector
POWER
Power (AES)
500 Watts
Recommended Amp Power
600 Watts (RMS) at 8 Ohms
Recommended Amplifier
DB Sound DB900
DRIVERS
Driver
Single 12 Inch LF Driver with 1 Inch HF Mounted in a constant Directivity Horn
PHYSICAL
Mounting
4 Point Tilt & Swivel Bracket
Enclosure Material
18 mm Birch Plywood
Grille
Black Cloth
Finish
Textured Black Paint
Dimensions (H × W × D)
595 mm × 400 mm × 300 mm
Weight
17.75 Kgs
