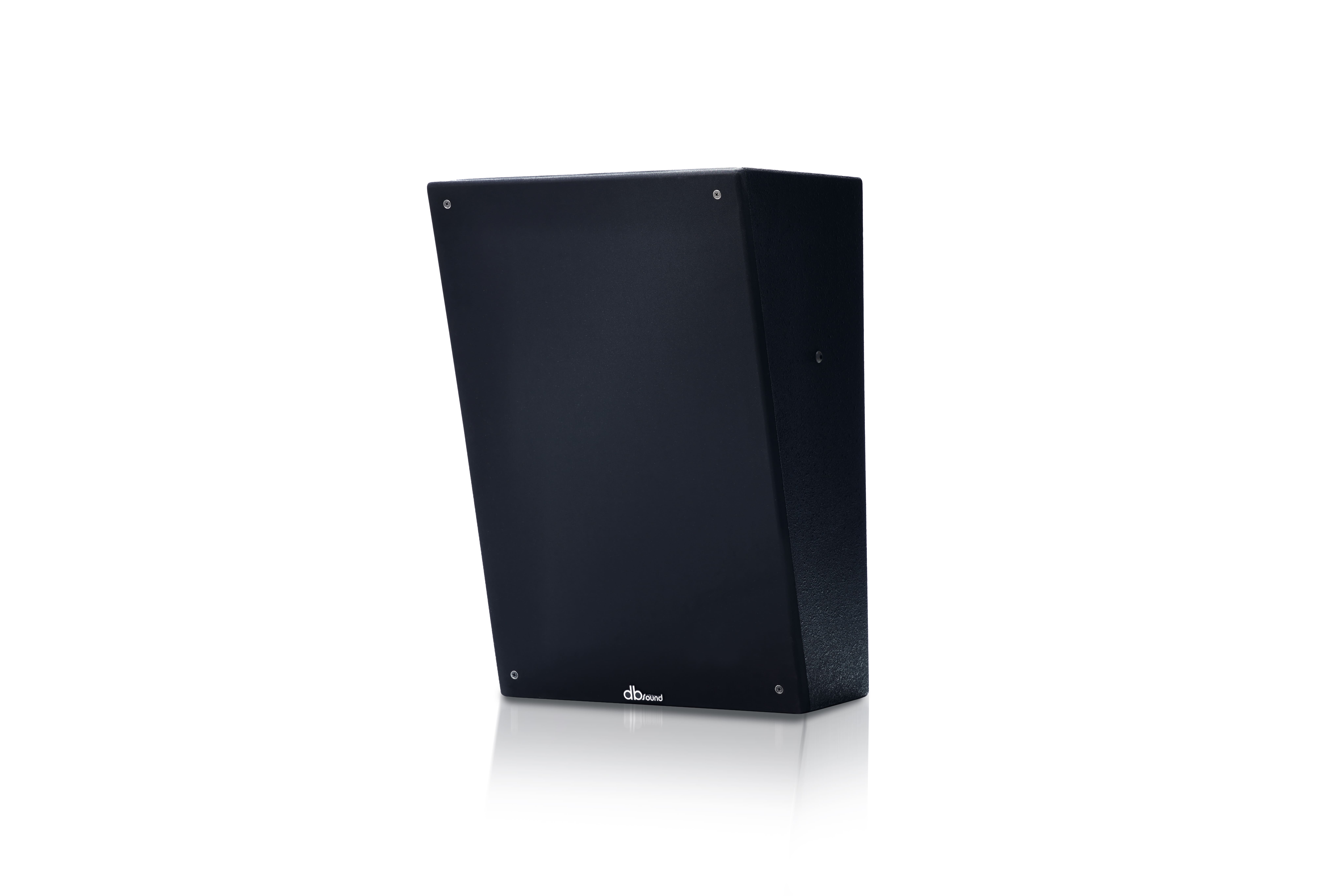

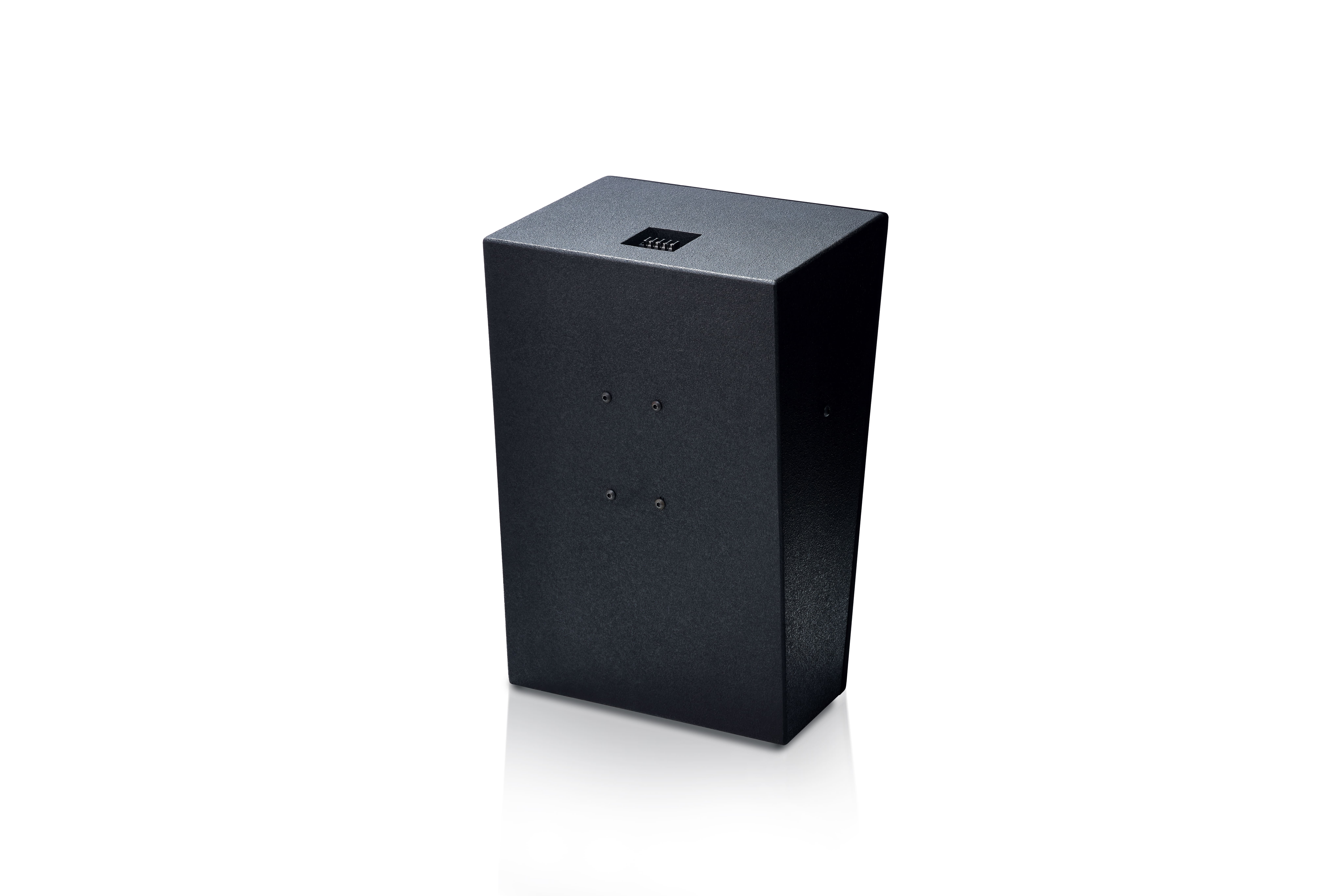

Gallery: S1220 - SURROUND CHANNEL

Overview

Composition: 1 × S1220 Cinema Surround Speaker System

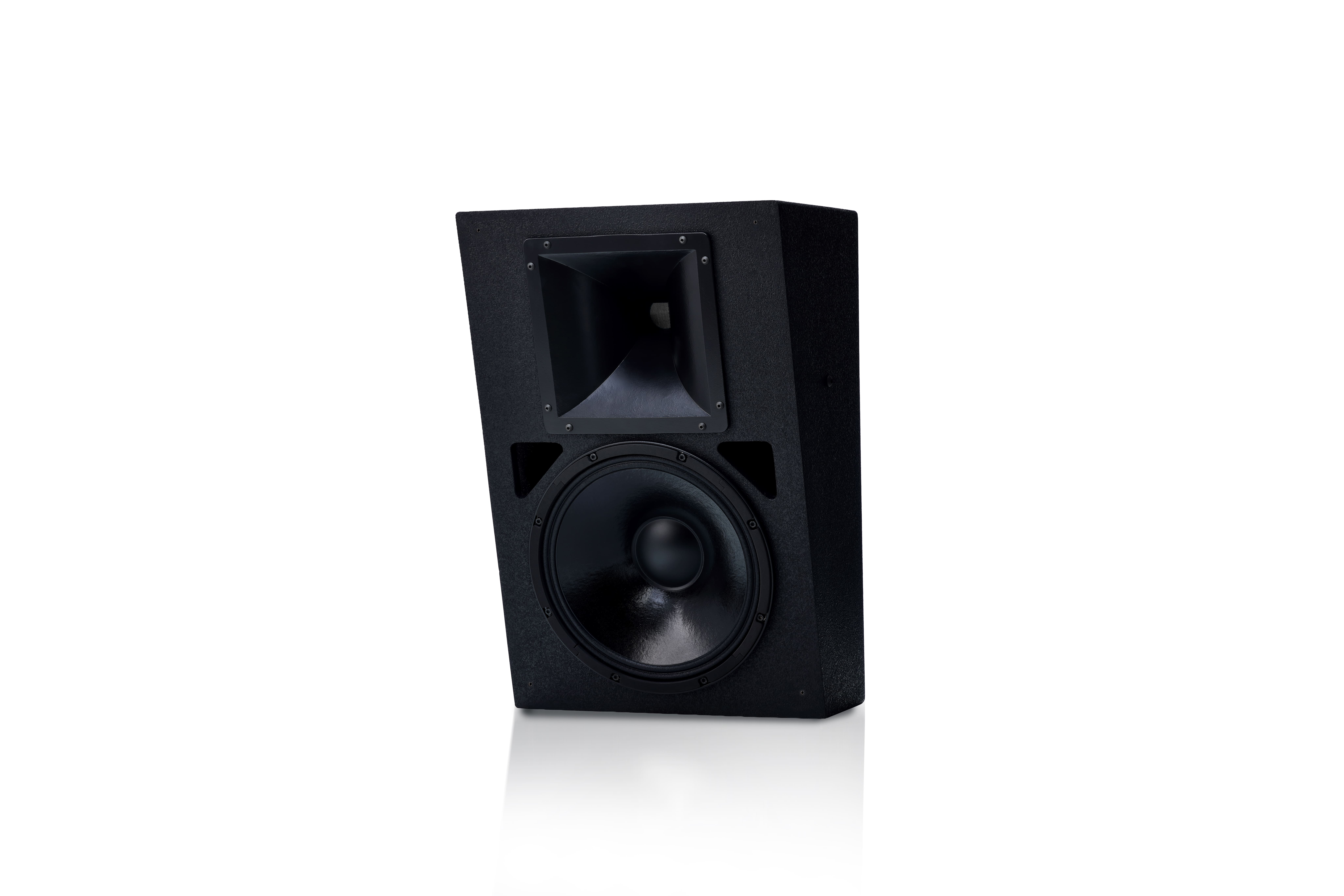

Delivering maximum coverage and exceptional headroom for expansive auditoriums up to 70 feet wide, the S1220, is a high- performance 2-way passive surround loudspeaker that represents the pinnacle of ambient immersion.It features a robust, braced cabinet meticulously engineered to direct acoustic energy across the entire audience while effectively eliminating undesirable ceiling reflections.At its heart, a powerful 12-inch world- class Lavoce low - frequency driver is paired with a 1-inch exit compression driver on 80° x 60° constant directivity horn for flawless high- frequency control. Optimised for the most demanding Dolby Atmos, Dolby 7.1, and DTS:X soundtracks, it ensures a deeply captivating, seamless soundstage throughout the entire venue.

Features

Dolby Surround 7.1 Ready
Dolby Surround 7.1 Ready
Dolby Atmos Ready
Dolby Atmos Ready
DTS:X Ready
DTS:X Ready
Powered By Lavoce Italiana
Powered By Lavoce Italiana
Screen Width: Up to 70 ft
Screen Width: Up to 70 ft

Applications

Cinemas
Multiplexes
Megaplexes
PLF Screens
Surround Channels
Overhead Channels

Warranty

Product Warranty

3 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
S1220
Configuration
Two-Way Cinema Surround System
Frequency Range
50 Hz to 18 KHz
Sensitivity
107 dB
Maximum SPL
132 dB
Nominal Impedance
8 Ohms
Coverage Pattern
80° H × 60° V
Crossover Frequency
2500 Hz
Connectors
4 Pin Barrier Terminal Block Connector
POWER
Power (AES)
300 Watts
Recommended Amp Power
600 Watts (RMS) at 8 Ohms
Recommended Amplifier
DB Sound DB600
DRIVERS
Driver
Single 12 Inch LF Driver with 1 Inch HF Mounted in a constant Directivity Horn
PHYSICAL
Mounting
Fixed U Brackets / 4 Point Tilt & Swivel Bracket
Enclosure Material
18 mm Birch Plywood
Grille
Black Cloth
Finish
Textured Black Paint
Dimensions (H × W × D)
525 mm × 400 mm × 275 mm
Weight
13.50 Kgs
