Gallery: S1020 - SURROUND CHANNEL

Overview

Composition: 1 × S1020 Cinema Surround Speaker System

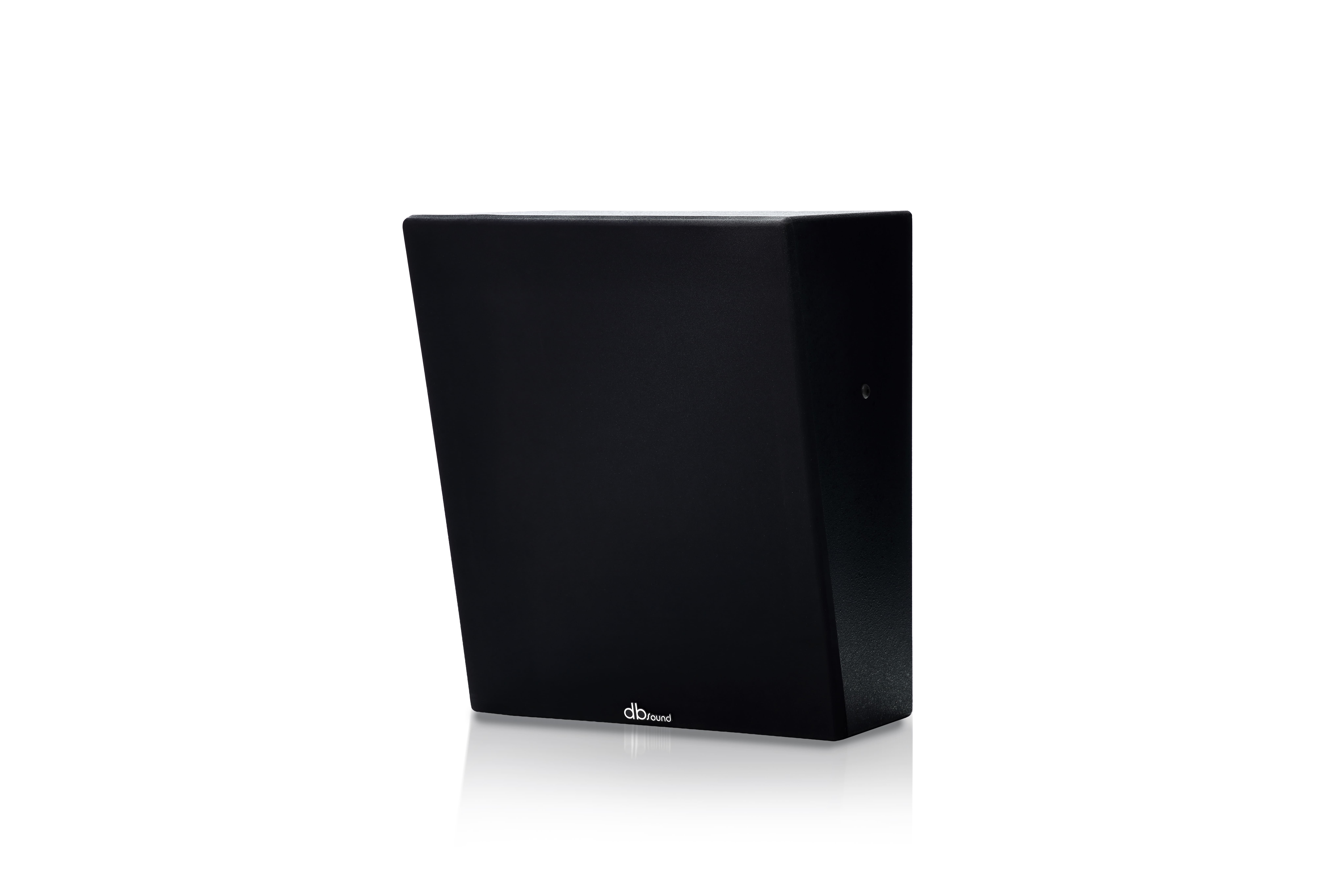

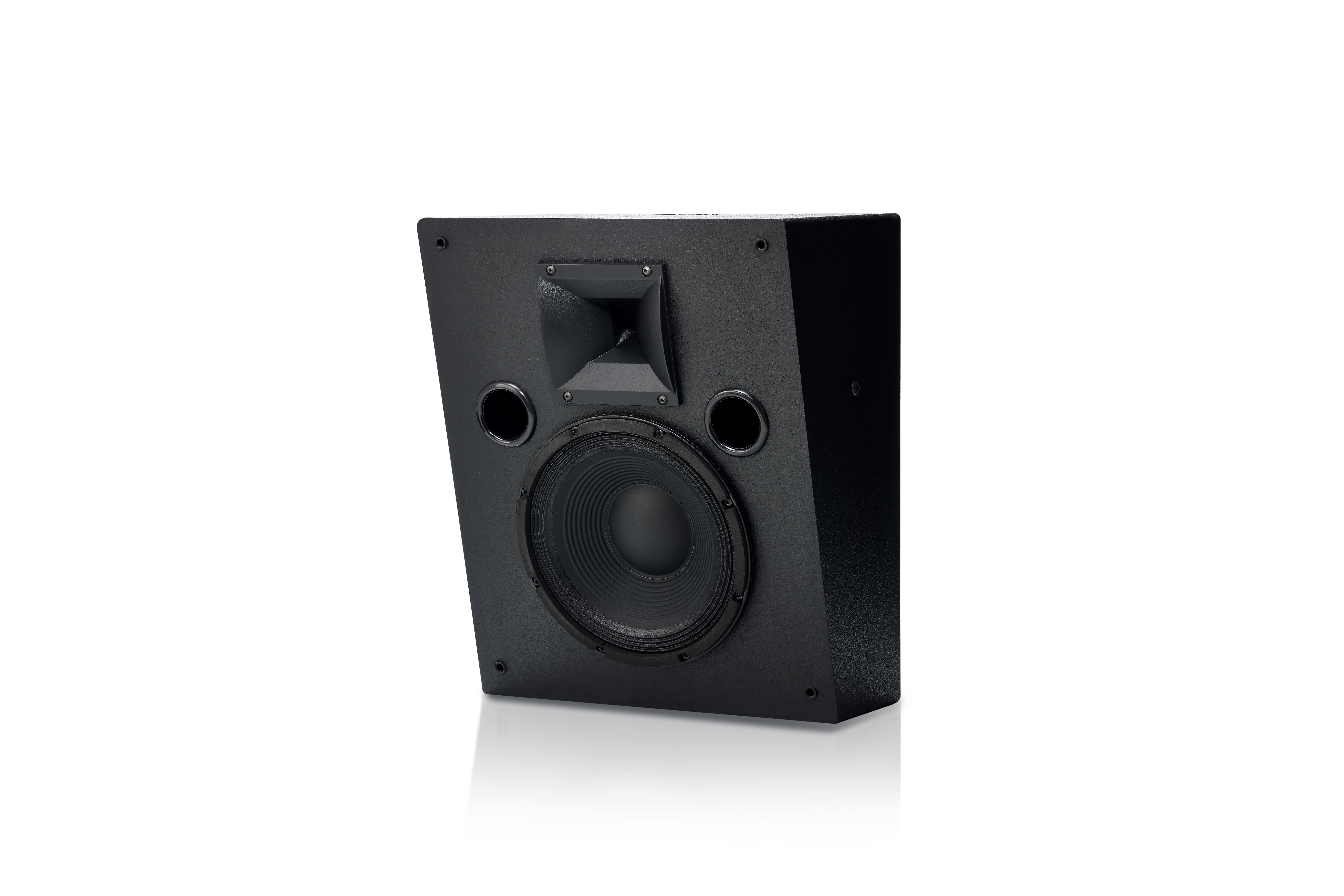

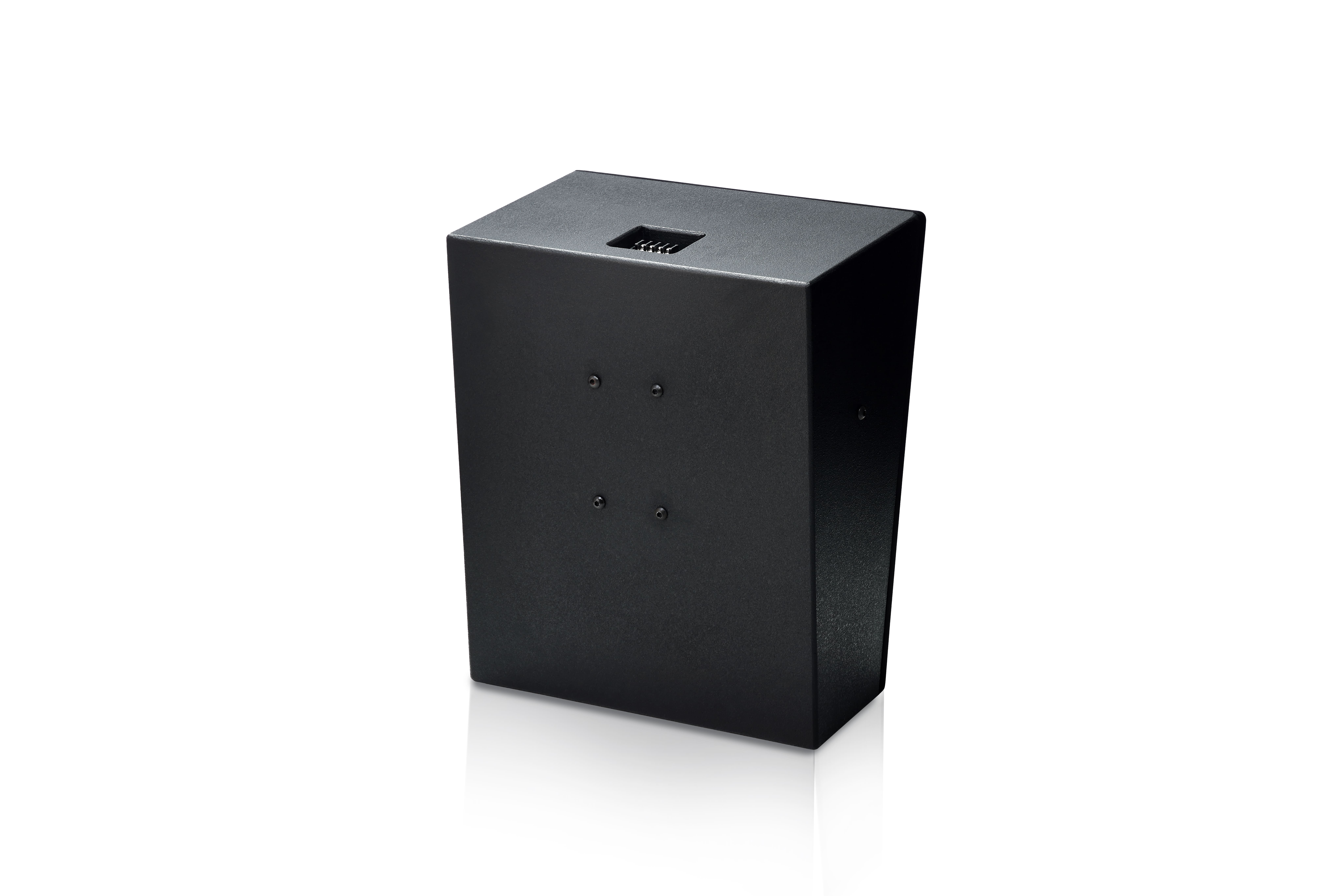

This high-performance 2-way passive surround loudspeaker, the S1020, brings enhanced power and precision to larger auditoriums and is engineered to handle expansive cinema halls up to 50 feet wide.It features a robust, braced cabinet designed to achieve superior sound distribution while effectively mitigating undesirable ceiling reflections.At its core, a world- class 10-inch Lavoce low- frequency driver pairs with a 1-inch exit compression driver on an 80° x 60° constant directivity horn for exceptionally precise control.This system delivers unmatched acoustic depth and efficiency, making it the definitive choice for high - demand Dolby Atmos, Dolby 7.1, and DTS: X environments.

Features

Dolby Surround 7.1 Ready
Dolby Surround 7.1 Ready
Dolby Atmos Ready
Dolby Atmos Ready
DTS:X Ready
DTS:X Ready
Powered By Lavoce Italiana
Powered By Lavoce Italiana
Screen Width: Up to 50 ft
Screen Width: Up to 50 ft

Applications

Cinemas
Multiplexes
Megaplexes
PLF Screens
Surround Channels
Overhead Channels

Warranty

Product Warranty

3 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
S1020
Configuration
Two-Way Cinema Surround System
Frequency Range
60 Hz to 18 KHz
Sensitivity
107 dB
Maximum SPL
130 dB
Nominal Impedance
8 Ohms
Coverage Pattern
80° H × 60° V
Crossover Frequency
2500 Hz
Connectors
4 Pin Barrier Terminal Block Connector
POWER
Power (AES)
250 Watts
Recommended Amp Power
250 Watts (RMS) at 8 Ohms
Recommended Amplifier
DB Sound DB600
DRIVERS
Driver
Single 10 Inch LF Driver with 1 Inch HF Mounted in a constant Directivity Horn
PHYSICAL
Mounting
Fixed U Brackets / 4 Point Tilt & Swivel Bracket
Enclosure Material
18 mm Birch Plywood
Grille
Black Cloth
Finish
Textured Black Paint
Dimensions (H × W × D)
485 mm × 400 mm × 270 mm
Weight
12.00 Kgs
