Gallery: C2153 - SCREEN CHANNEL
Overview
Composition: 1 × C2153 Three Way Cinema Screen Speaker

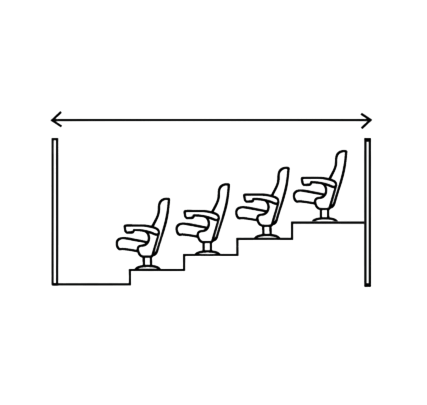

Taking power and scale to the next level within our Pro Cinema range, the C2153 is engineered for larger commercial theatres and massive PLF screens up to 68 feet. Designed around our commitment to absolute acoustic excellence, this premium 3-way bi-amplified system deploys dual 15-inch world-class Lavoce drivers from Italy to deliver immense low-frequency impact alongside crystalline mid-high precision. Fully ready for the cinematic demands of Dolby Atmos, Dolby 7.1, and DTS:X, the C2153 commands the room with effortless headroom, bringing reference-grade clarity to everyone seated.
Features
Applications
Cinemas
Multiplexes
Megaplexes
PLF Screens
Warranty
Product Warranty
3 Years
Terms & Conditions Apply
Specifications
SYSTEM
Model
C2153
Configuration
Three Way Bi-Amplified Speaker System
Frequency Range
50 Hz to 20 KHz
Sensitivity LF
103 dB
Sensitivity MF/HF
97 dB / 108 dB
Maximum SPL
138 dB
Nominal Impedance
LF - 4 Ohms & MHF - 8 Ohms
Connectors
4 Pin Barrier Terminal Block Connector
POWER
Power LF (AES)
800 Watts
Power MHF (AES)
250 Watts
Recommended Amp Power LF
1200 Watts (RMS) at 4 Ohms
Recommended Amp Power MHF
500 Watts (RMS) at 8 Ohms
Recommended Amplifier
DB Sound DB1200
DRIVERS
Low Frequency Driver
Dual 15 Inch (380 mm) paper cone driver with 3 Inch (75 mm) Voice Coil
Mid Frequency Driver
Single 6.5 Inch (165 mm) paper cone driver with 1.5 Inch (38 mm) Voice Coil
High Frequency Driver
Single 1 Inch (25 mm) Compression Driver with 1.7 Inch (44.4 mm) polyester diaphragm Voice Coil
Horn
90° × 40° for MHF with Tilt & Swivel Bracket
PHYSICAL
Enclosure Material
18 mm Birch Plywood
Dimensions (H × W × D)
1700 mm × 500 mm × 400 mm
Weight
58.20 Kgs
