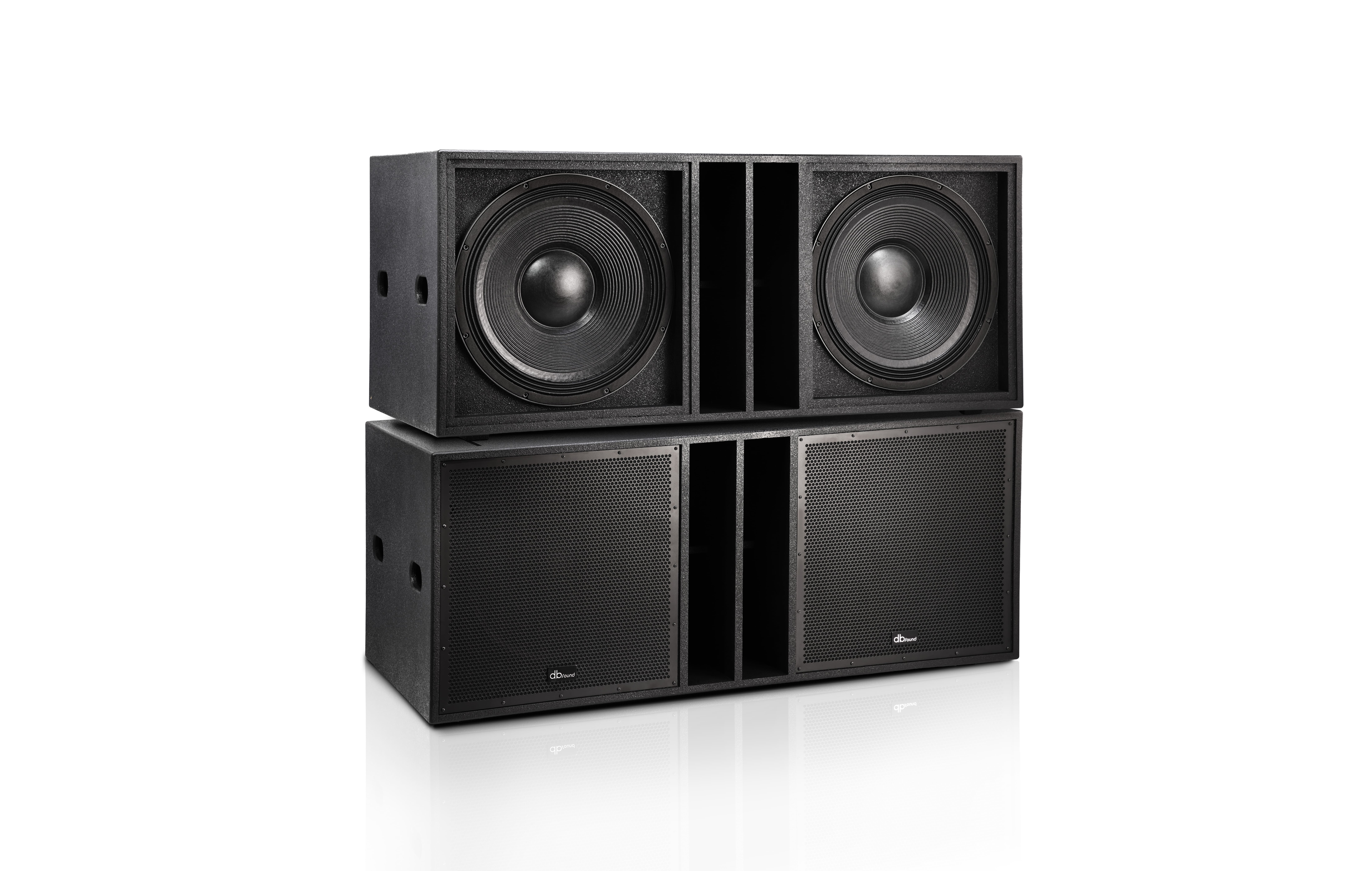

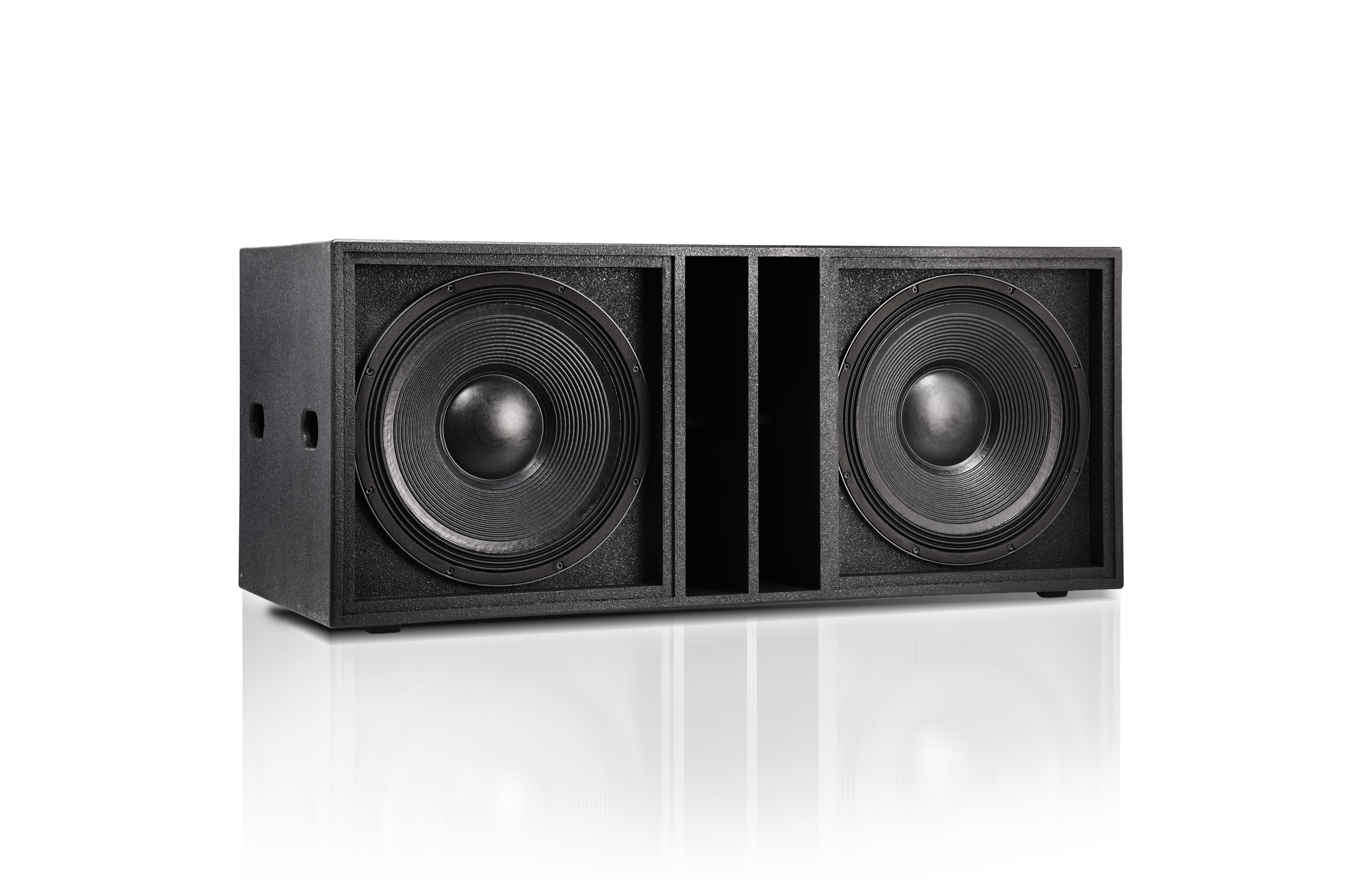

Gallery: SUB218 - HIGH POWER SUBWOOFER SYSTEM

Overview

Composition: 1 × SUB218 High Power Subwoofer System

Delivering a monumental low-frequency foundation for the most challenging large-scale environments, this front-loaded passive subwoofer system stands as a premier solution for touring-grade sound reinforcement. At the heart of its high-SPL design are dual 18-inch transducers, each engineered with a robust 4-inch voice coil to handle immense power whilst maintaining exceptional acoustic precision. These premium components are sourced from Spain's world-renowned driver manufacturer, Beyma, ensuring top-tier audio fidelity and absolute long-term reliability under heavy operation. To withstand the rigours of the road, the system is housed within a rugged 18mm birch plywood enclosure, finished in a tough textured black paint and protected by dual CNC perforated steel grilles with acoustical foam backing. Utilising professional NL4 MP connectors, the SUB218 is the definitive, high-output bass anchor choice for arenas, stadiums, outdoor performances, and large-scale concert production.

Features

Plywood Construction
Plywood Construction
Bandpass Design
Bandpass Design
M20 Pole Socket mounted
M20 Pole Socket mounted
Built with Beyma Drivers
Built with Beyma Drivers

Applications

Arenas
Auditoriums
Concerts
Houses of Worship
Stadiums

Warranty

Product Warranty

2 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
SUB218
System Type
High Power Dual Subwoofer System
Operational Mode
Passive
Frequency Response
30 Hz to 2000 Hz
Sensitivity
98 dB at 2.83V/1m
Maximum SPL
130dB
System Impedance
4 Ohms
Connectors
2 x NL4 MP Connectors
POWER
Power (AES)
2800 Watts
Program Power (AES)
5600 Watts
DRIVERS
Driver LF
Dual 18 Inch LF Driver with 4 Inch Voice Coil
PHYSICAL
Enclosure
18mm Birch Plywood
Grille
Dual CNC Perforated Steel with Acoustical Foam Backing
Finish
Textured Black Paint
Dimensions (H x W x D)
540 x 1300 x 700 mm
Weight
92.00 Kgs
