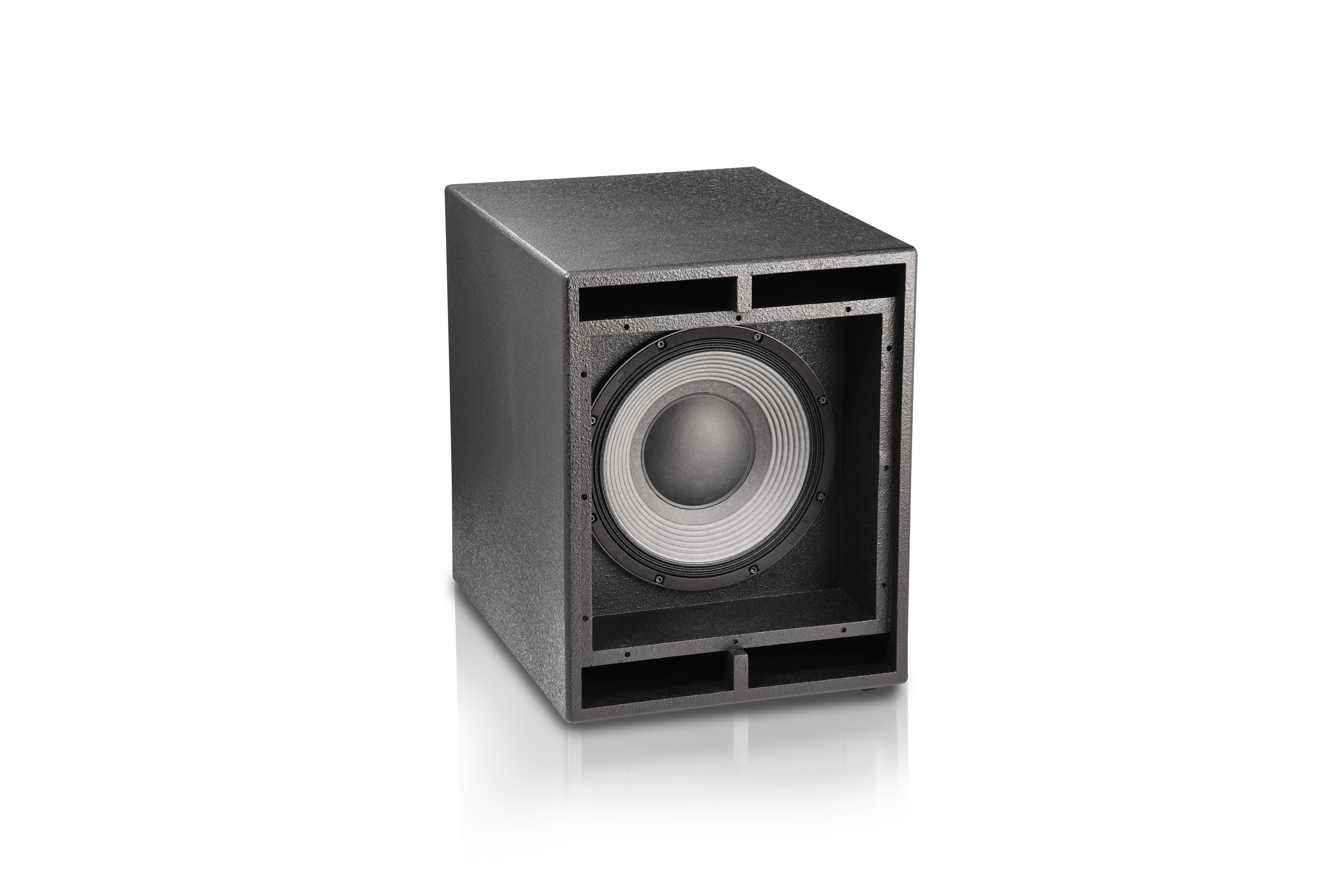

Gallery: SB12BP - PASSIVE SUBWOOFER SPEAKERS

Overview

Composition: 1 × SB12BP Passive Band Pass Subwoofer System

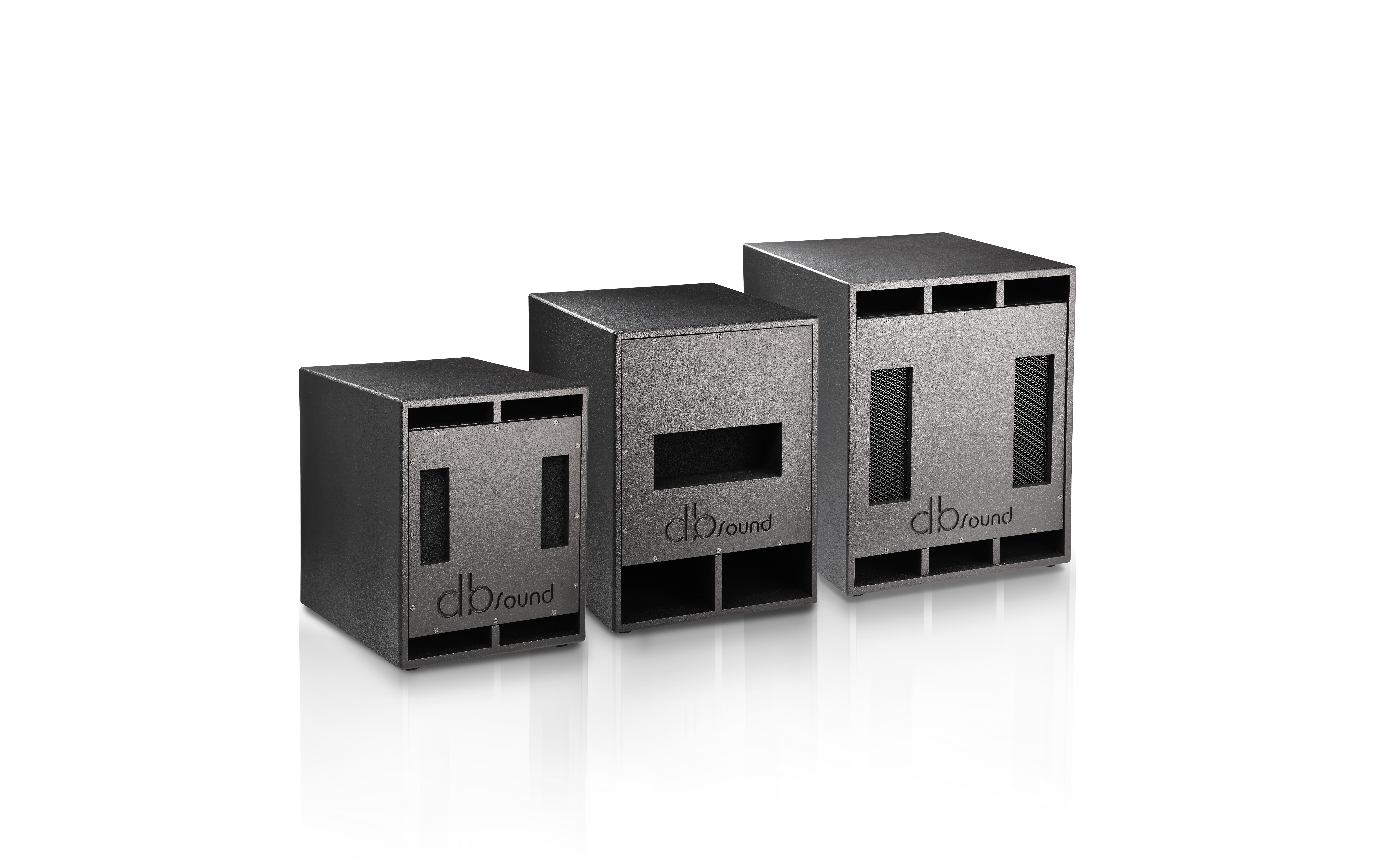

Engineered to deliver profound low-frequency extension and high-impact acoustic performance, the SBBP series introduces three high-output passive band-pass subwoofers optimised for demanding fixed installations and touring applications. The lineup features the SB12BP with a 12-inch low-frequency driver and a 3-inch voice coil, the mid-sized SB15BP housing a 15-inch driver with a 3-inch voice coil, and the flagship SB18BP, which steps up to a formidable 18-inch driver paired with a robust 4-inch voice coil. All three models leverage a specialised band-pass vented architecture, generating exceptionally high sound pressure levels with omnidirectional dispersion. Housed within rugged enclosures meticulously crafted from 18mm birch plywood, the SB12BP and SB15BP utilise premium Italian Sica drivers, whilst the SB18BP is loaded with world-class Lavoce drivers from Italy. Complete with integrated M20 threaded pole sockets for flexible system deployment, the SBBP Series represents the ultimate low-end foundation for clubs, bars, multimedia spaces, and portable sound reinforcement systems.

Features

Plywood Construction
Plywood Construction
Bandpass Design
Bandpass Design
M20 Pole Socket mounted
M20 Pole Socket mounted
Built with Custom European Drivers
Built with Custom European Drivers

Applications

Club and Bar Installs
Speech Reinforcement
Houses of Worship
Multimedia Spaces
Portable Sound Reinforcement

Warranty

Product Warranty

2 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
SB12BP
System Type
Passive Band Pass Subwoofer System
Nominal Impedance
4 Ohms
Maximum SPL
128dB
Frequency Response
43 Hz – 300 Hz
Directivity
Omni Directional
Connectors
2 x NL4 MP Connectors
POWER
Power (AES)
400W
Program Power (AES)
800W
DRIVERS
LF Driver
Single 12 Inch LF 3 Inch VC
PHYSICAL
Pole Socket
M20 Threaded Pole Socket
Enclosure
18mm Birch Plywood
Grille
CNC Perforated Steel with Acoustical Foam Backing
Finish
Textured Black Paint
Dimensions (H x W x D)
520 x 405 x 507 mm
Weight
27.00 Kgs
