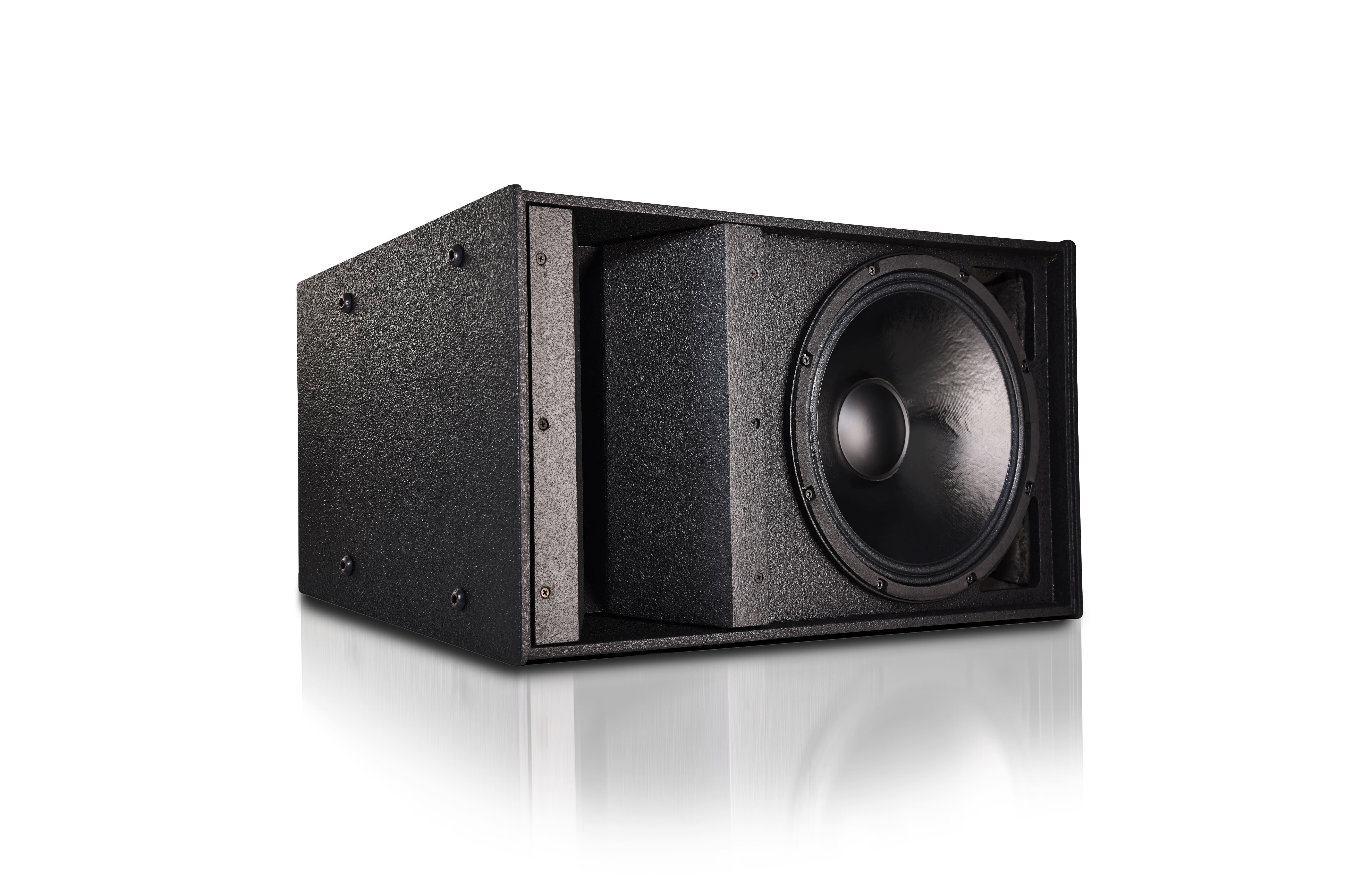

Gallery: LA112P - CONSTANT CURVATURE LINE ARRAY

Overview

Composition: 1 × LA112P Constant Curvature Line Array System

Engineered around a high-frequency driver precisely mounted on a specially designed wooden line array waveguide, this state-of-the-art system achieves a highly controlled directivity pattern of 100° horizontally by 18° vertically for focused sound distribution. At its acoustic core, the LA112P features a robust single 12-inch low-frequency driver with a 3-inch voice coil, alongside a high-frequency driver boasting a 1-inch exit and a 44.4mm voice coil polymer diaphragm. Both premium components are sourced from the renowned Spanish manufacturer Beyma, ensuring exceptional audio performance, absolute reliability, and a powerful maximum SPL of 135dB. Housed within a rugged 18mm birch plywood enclosure finished in a textured black paint, the system is protected by a CNC perforated steel grille with acoustical foam backing. Complete with dual M8 rigging points and two NL4 MP connectors, this passive system stands as a premier choice for demanding front-of-house (FOH) applications, delivering pristine sound reproduction and broad coverage across auditoriums, houses of worship, clubs, and portable sound reinforcement environments.

Features

Plywood Construction
Plywood Construction
Constant Curvature Array
Constant Curvature Array
Custom Wave Guide
Custom Wave Guide
Built with Beyma Drivers
Built with Beyma Drivers

Applications

Speech Reinforcement
Houses of Worship
Portable Sound Reinforcement
Clubs & Pubs

Warranty

Product Warranty

2 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
LA112P
System Type
Constant Curvature Line Array System
Nominal Impedance
8 Ohms
Sensitivity
109 dB at 2.83V/1m
Maximum SPL
136dB
Frequency Response
45 Hz to 20 KHz
Coverage Pattern
100° x 18°
Crossover Mode
Passive
Connectors
2 x NL4 MP Connectors
POWER
Power (RMS)
600W
Program Power (RMS)
1200W
DRIVERS
Driver LF
Single 12 Inch LF Driver with 3 Inch Voice Coil
Driver HF
Single 1 Inch HF Driver with Polymer Diaphragm
PHYSICAL
Rigging
CNC Steel Plate with 8 x M10 Holes
Enclosure
18mm Birch Plywood
Grille
CNC Perforated Steel with Acoustical Foam Backing
Finish
Textured Black Paint
Dimensions (H x W x D)
355 x 635 x 340 mm
Weight
19.80 Kgs
