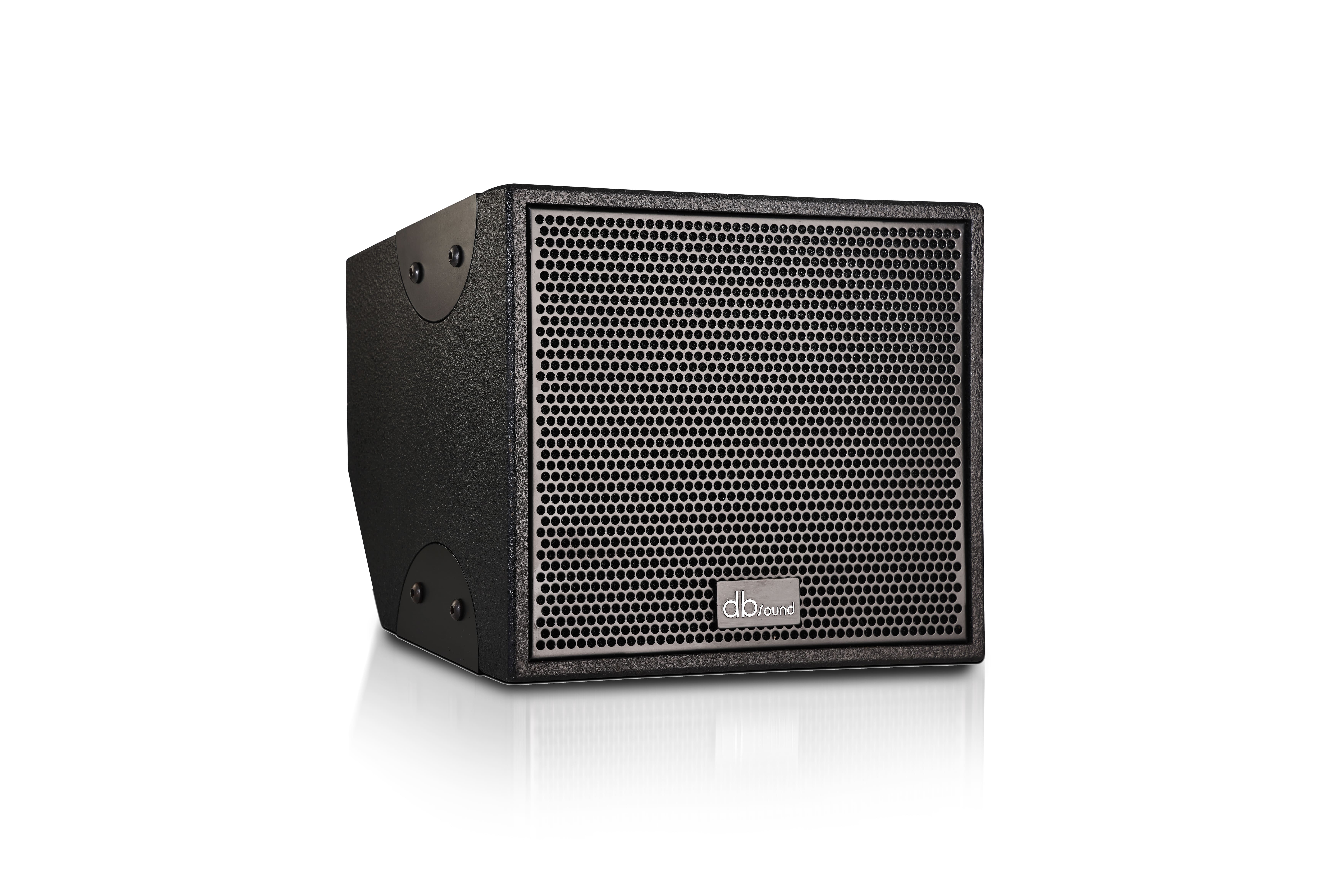

Gallery: LA102CX - CONSTANT CURVATURE LINE ARRAY

Overview

Composition: 1 × LA102CX Constant Curvature Two-Way Line Array System

Utilising high-quality Lavoce drivers from Italy, this two-way passive line array system is meticulously engineered around a single 10-inch coaxial driver featuring a 1-inch exit high-frequency component. The constant curvature format ensures a remarkably consistent 70° conical dispersion pattern, delivering pristine speech reinforcement and music playback up to a powerful maximum SPL of 133 dB. For seamless inter-box rigging and deployment flexibility, the system features innovative, adjustable semi-circular hardware integrated directly onto its rugged 15mm birch plywood enclosure. Equipped with dual NL4MP connectors and finished in a tough textured black paint, the LA102CX stands as the definitive compact choice for premium portable sound reinforcement in clubs, pubs, houses of worship, and mini auditoriums.

Features

Plywood Construction
Plywood Construction
Constant Curvature Array
Constant Curvature Array
Coaxial Driver
Coaxial Driver
Built with Lavoce Drivers
Built with Lavoce Drivers
70° Conical Pattern
70° Conical Pattern

Applications

Speech Reinforcement
Houses of Worship
Portable Sound Reinforcement
Clubs & Pubs

Warranty

Product Warranty

2 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
LA102CX
System Type
Constant Curvature Two-Way Line Array System
Nominal Impedance
8 Ohms
Sensitivity
108 dB at 2.83V/1m
Maximum SPL
133 dB
Frequency Response
65 Hz to 20 KHz
Directivity
70° Conical Pattern
Connectors
2 x NL4MP Connectors
POWER
Power (AES)
400W
Program Power (AES)
800W
DRIVERS
Driver LF
Single 10 Inch Driver with 1 Inch Exit HF in Co-Axial Format
PHYSICAL
Rigging
By Bumper
Rigging Between Boxes
CNC Steel Plate with 8 x M10 Holes
Enclosure
15mm Birch Plywood
Grille
CNC Perforated Steel with Acoustical Foam Backing
Finish
Textured Black Paint
Dimensions (H x W x D)
300 x 340 x 290 mm
Weight
11.5 Kgs
