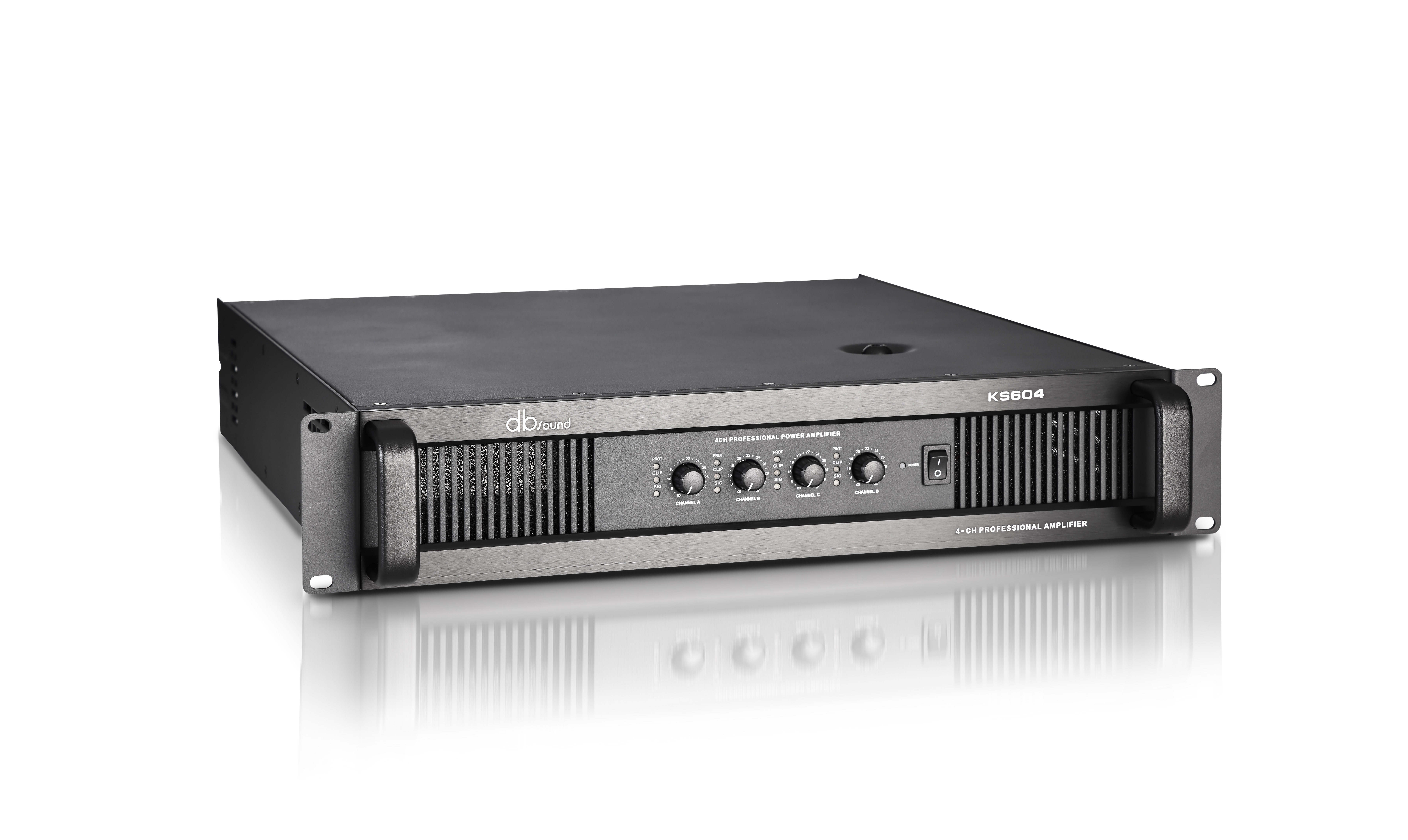

Gallery: KS604 - MULTICHANNEL POWER AMPLIFIER

Overview

Composition: 1 × KS604 Multichannel Power Amplifier

Serving as the entry-level model in the KS series, the KS604 is a robust 4-channel power amplifier engineered to deliver exceptional audio performance across a diverse range of professional environments. It delivers 600 W per channel into a 4 Ohm load, using advanced Class H+ circuitry for highly efficient power delivery and sonic precision, all within a space-saving 2U chassis. Industry-standard speakON outputs and a comprehensive protection suite — DC protect, short circuit protection, overheat protection and soft start operation — guarantee reliable, stable operation under demanding installation conditions, making it an ideal multi-channel solution for commercial cinemas, private home theatres, portable AV setups and any venue requiring precise, high-impact music and speech reinforcement.

Features

2U Chassis Design
2U Chassis Design
Class H+ Design
Class H+ Design
4 CH Amplifier
4 CH Amplifier
speakON Outputs
speakON Outputs

Applications

A/V Portable
Music Reproduction
Pro Audio Installs
Commercial Cinema Applications
Installed Sound Reinforcement

Warranty

Product Warranty

2 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
KS604
Circuit Type
Class H+
Channels
4
Frequency Response
±0.5 dB, 20 Hz to 20 KHz (at 1 Watt into 8 Ohm)
THD
≤0.05% @ 8Ω 2KHz
Signal / Noise
>105 dB
Slew Rate
40 V/µs
Damping Factor
>550 at 8Ω
Crosstalk at Rated Output
>100 dB (8 Ohms, 1KHz)
Protection
DC Protection, Short Circuit Protection, Overheat Protection, Soft Start
Indicators
Signal, Protect, Clip, Limiter
POWER
Output Power Stereo @ 8 Ohms (1KHz, 0.1% THD)
4 × 400 W
Output Power Stereo @ 4 Ohms (1KHz, 0.1% THD)
4 × 600 W
Output Power Bridge @ 8 Ohms (1KHz, 0.1% THD)
2 × 1200 W
Power Supply
230V 50/60Hz
INPUT / OUTPUT
Input Sensitivity
0.77V, 1.44V
Input Impedance
20KΩ Balanced or 10KΩ Unbalanced
Output Connectors
speakON
PHYSICAL
Height
2U Chassis
Dimensions (H × W × D)
88 mm × 483 mm × 475 mm
Weight
21 Kgs
