Gallery: KA5 - ARCHITECTURAL SPEAKERS

Overview

Composition: 1 × KA5 Ultra Compact Speaker System

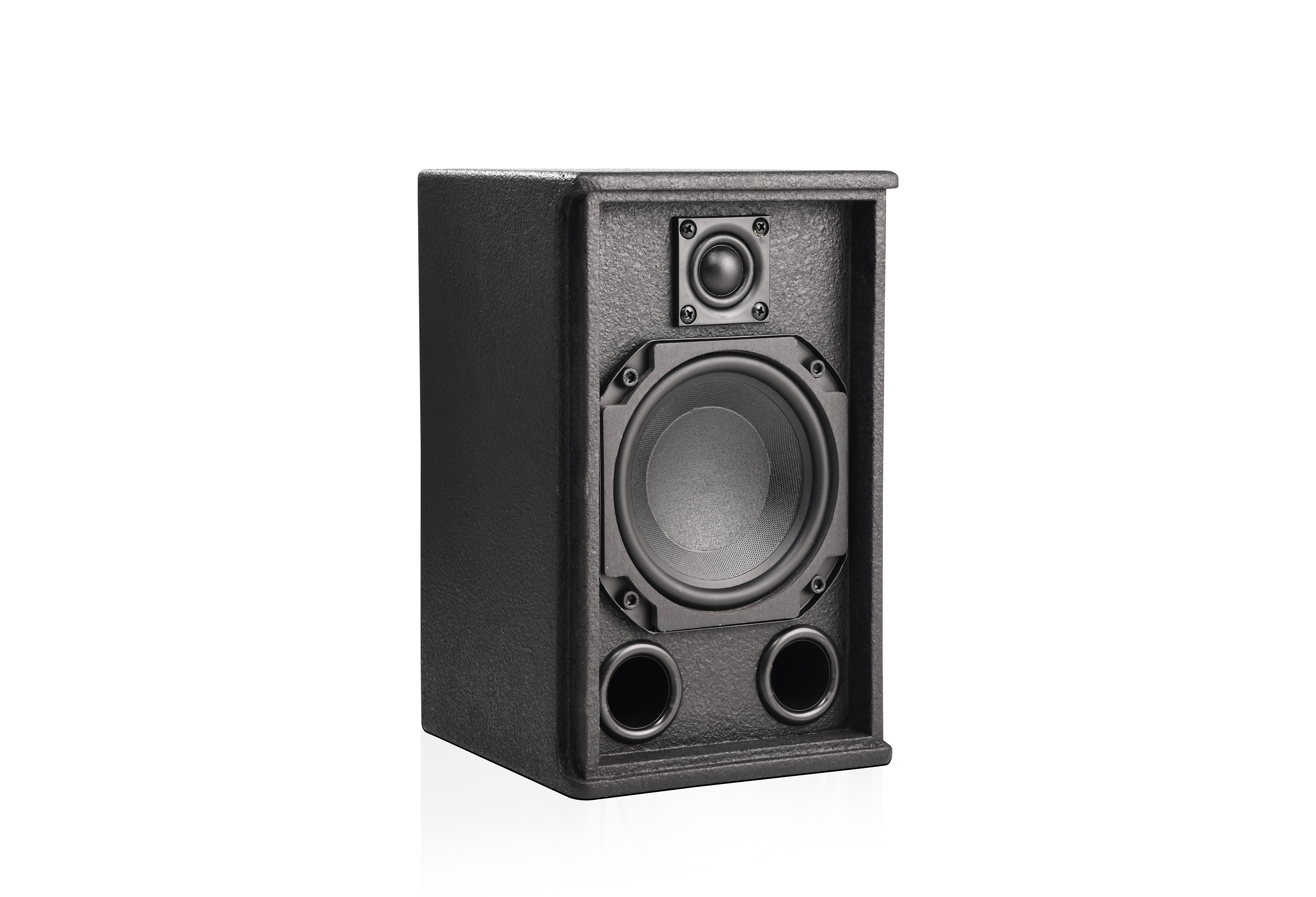

The KA5 larger speaker system balances high-output versatility with a remarkably small footprint. A high-performance 5-inch woofer is seamlessly integrated with a 1-inch soft dome tweeter on a specialised ABS flange, housed in a robust 12 mm birch plywood cabinet with a tuned port design for rich, accurate music playback and side-fill monitoring. Using world-class drivers sourced from esteemed European component manufacturers, it projects a wide 90° conical dispersion, offering a flexible and highly reliable audio solution for clubs, bars, portable sound reinforcement, multimedia spaces and houses of worship.

Features

Plywood Construction
Plywood Construction
Brackets Included
Brackets Included
Point Source
Point Source
90° Conical Pattern
90° Conical Pattern
Built with Custom European Drivers
Built with Custom European Drivers

Applications

Club and Bar Installs
Background Music Playback
Houses of Worship
Conference Rooms
Portable Sound Reinforcement

Warranty

Product Warranty

2 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
KA5
System Type
Ultra Compact Speaker System
Frequency Response
63 Hz to 20 KHz
Sensitivity
89 dB (1w @ 1m)
Maximum SPL
110 dB
Nominal Impedance
8 Ohms
Directivity
90° Conical Dispersion
Connectors
4 Way Barrier Terminal Block Connector
POWER
Power (RMS)
120 W
Program Power (RMS)
240 W
DRIVERS
LF Driver
Single 5 Inch LF Driver
HF Driver
Single 1 Inch Soft Dome Tweeter Mounted with ABS Flange
PHYSICAL
Enclosure
12 mm Birch Plywood
Grille
CNC Perforated Steel with Acoustical Foam
Finish
Textured Black Paint
Rigging
4 × M5
Dimensions (H × W × D)
260 mm × 160 mm × 175 mm
Weight
3.80 Kgs
Accessories
Wall Mounting Multi Bracket
