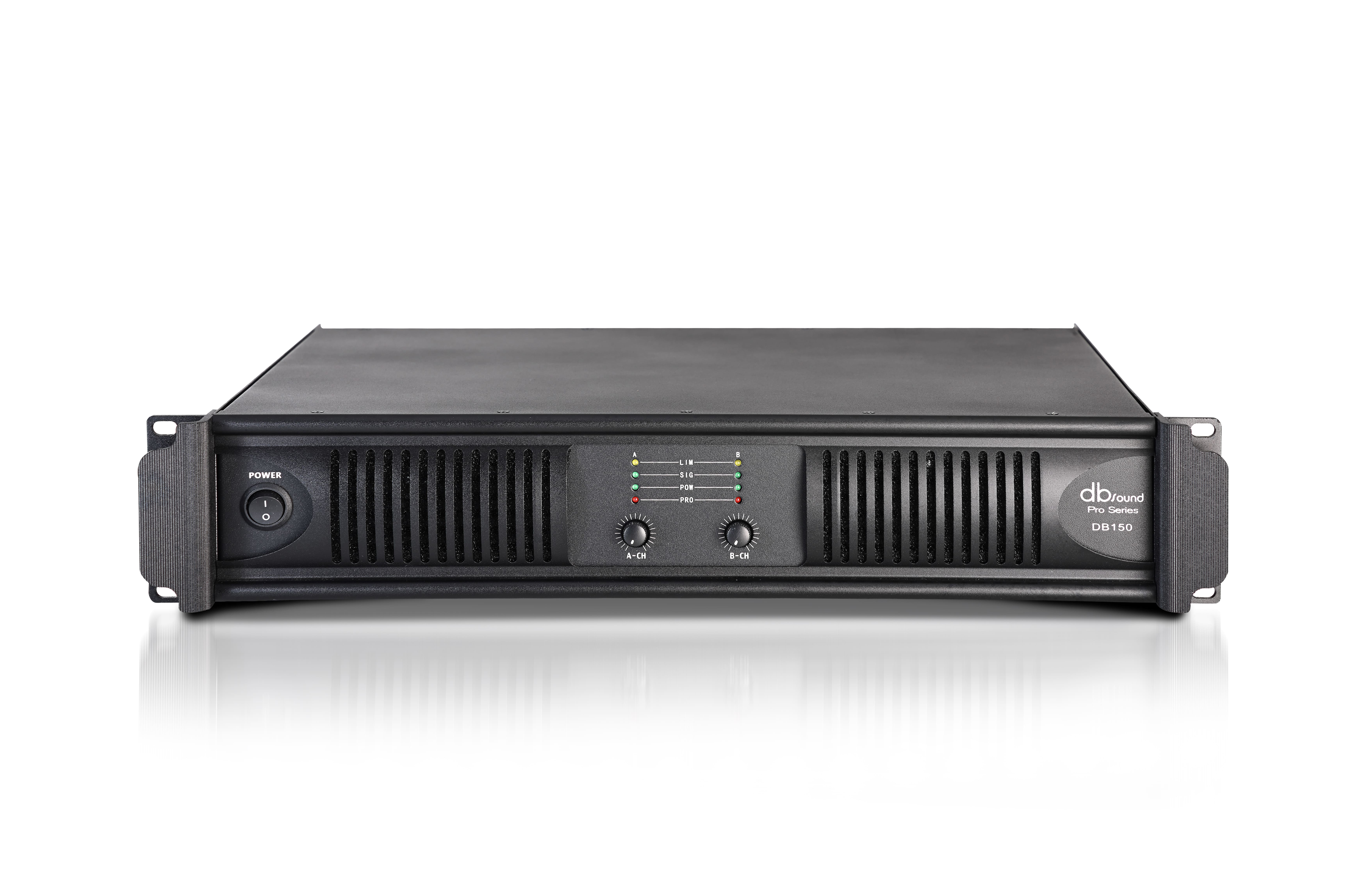

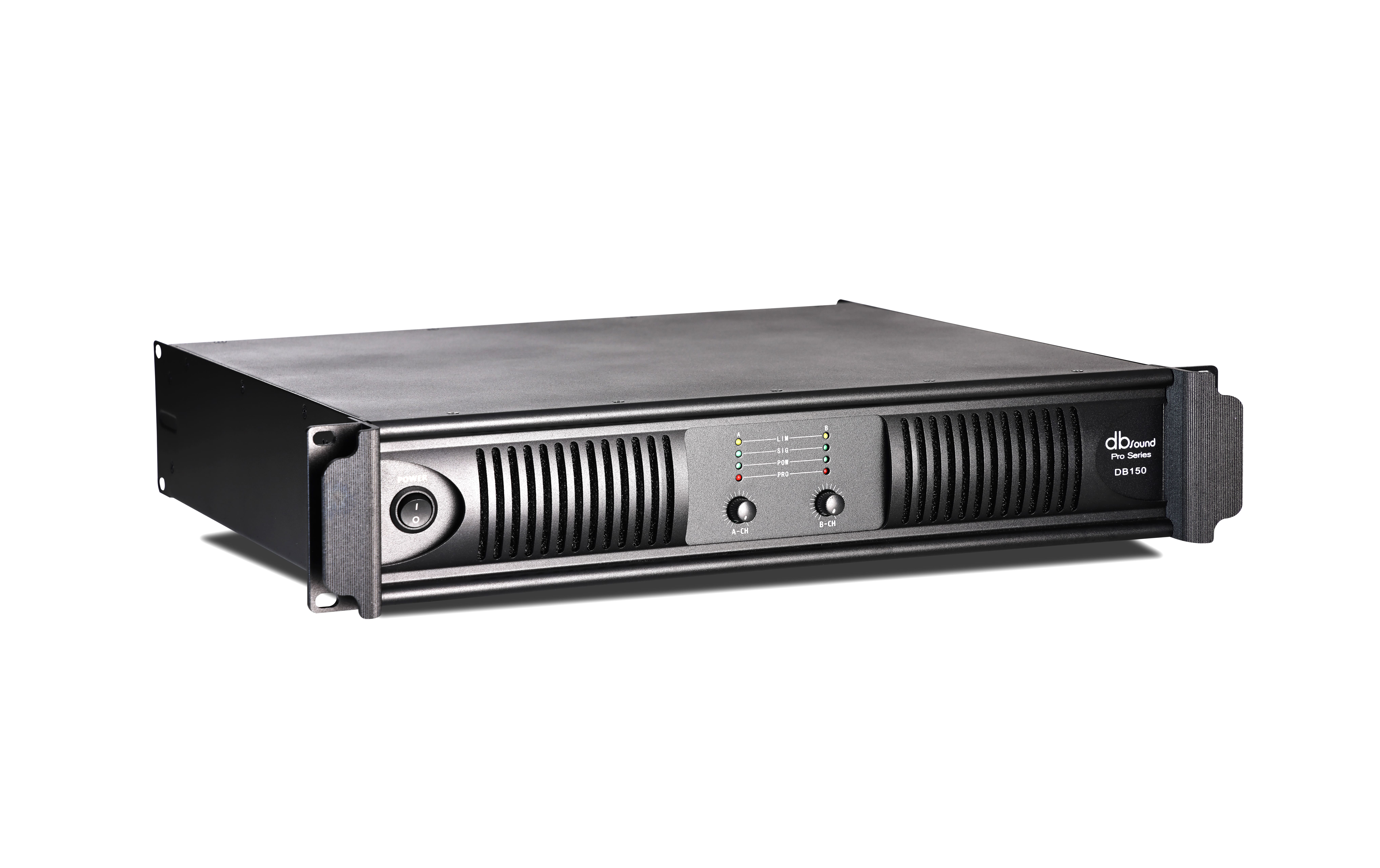

Gallery: DB150 - PROFESSIONAL POWER AMPLIFIER

Overview

Composition: 1 × DB150 Professional Power Amplifier

The DB150 is a two-channel professional power amplifier from the DB Sound DB series, delivering 150 W per channel at 4 Ohms or up to 300 W in bridged mode. Its advanced Class H+ circuitry optimises efficiency and power delivery within a rugged 2U chassis, and an extensive protection suite — DC protection, short circuit prevention, overheat protection and a soft-start function — ensures long-term, safe operation under demanding conditions. Complete with industry-standard speakON outputs, front-panel LED indicators (Signal, Protect, Clip, Limiter) and balanced inputs, it is an exemplary choice for portable AV setups, background music reproduction, pro audio installs and commercial cinema environments.

Features

2U Chassis Design
2U Chassis Design
Class H+ Design
Class H+ Design
2 CH Amplifier
2 CH Amplifier
speakON Outputs
speakON Outputs

Applications

A/V Portable
Music Reproduction
Pro Audio Installs
Commercial Cinema Applications
Installed Sound Reinforcement

Warranty

Product Warranty

2 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
DB150
Circuit Type
Class H+
Channels
2
Frequency Response
±0.5 dB, 20 Hz to 20 KHz (at 1 Watt into 8 Ohm)
THD
≤0.05% @ 8Ω 2KHz
Signal / Noise
105 dB
Slew Rate
40 V/µs
Damping Factor
>550 at 8Ω
Crosstalk at Rated Output
>100 dB (8 Ohms, 1KHz)
Protection
DC Protection, Short Circuit Protection, Overheat Protection, Soft Start
Indicators
Signal, Protect, Clip, Limiter
POWER
Output Power Stereo @ 8 Ohms (1KHz, 0.1% THD)
2 × 100 W
Output Power Stereo @ 4 Ohms (1KHz, 0.1% THD)
2 × 150 W
Output Power Bridge @ 8 Ohms (1KHz, 0.1% THD)
300 W
Power Supply
230V 50/60Hz
INPUT / OUTPUT
Input Sensitivity
0.77V, 1.44V
Input Impedance
20KΩ Balanced or 10KΩ Unbalanced
Output Connectors
speakON
PHYSICAL
Height
2U Chassis
Dimensions (H × W × D)
88 mm × 483 mm × 360 mm (2U)
Weight
13.5 Kgs
