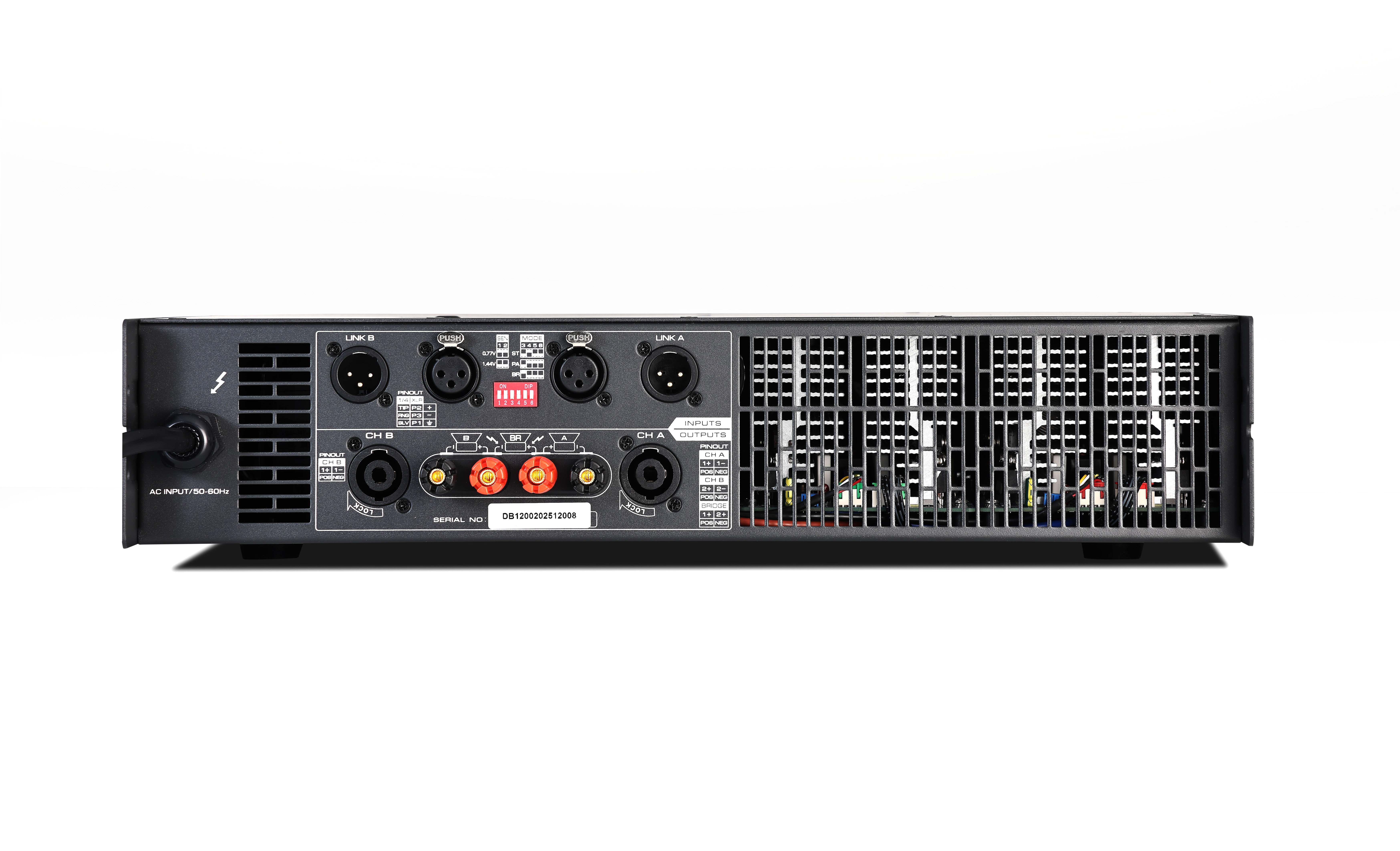

Gallery: DB1200 - PROFESSIONAL POWER AMPLIFIER

Overview

Composition: 1 × DB1200 Professional Power Amplifier

The DB1200 is a two-channel professional power amplifier from the DB Sound DB series, delivering 1200 W per channel at 4 Ohms. Its advanced Class H+ circuitry optimises efficiency and power delivery within a rugged 2U chassis, and an extensive protection suite — DC protection, short circuit prevention, overheat protection and a soft-start function — ensures long-term, safe operation under demanding conditions. Complete with industry-standard speakON outputs, front-panel LED indicators (Signal, Protect, Clip, Limiter) and balanced inputs, it is an exemplary choice for high-demand music playback, immersive audio applications, portable AV setups and large-scale installed sound reinforcement.

Features

2U Chassis Design
2U Chassis Design
Class H+ Design
Class H+ Design
2 CH Amplifier
2 CH Amplifier
speakON Outputs
speakON Outputs

Applications

A/V Portable
Music Reproduction
Pro Audio Installs
Commercial Cinema Applications
Installed Sound Reinforcement

Warranty

Product Warranty

2 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
DB1200
Circuit Type
Class H+
Channels
2
Frequency Response
±0.5 dB, 20 Hz to 20 KHz (at 1 Watt into 8 Ohm)
THD
≤0.05% @ 8Ω 2KHz
Signal / Noise
105 dB
Slew Rate
40 V/µs
Damping Factor
>550 at 8Ω
Crosstalk at Rated Output
>100 dB (8 Ohms, 1KHz)
Protection
DC Protection, Short Circuit Protection, Overheat Protection, Soft Start
Indicators
Signal, Protect, Clip, Limiter
POWER
Output Power Stereo @ 8 Ohms (1KHz, 0.1% THD)
2 × 800 W
Output Power Stereo @ 4 Ohms (1KHz, 0.1% THD)
2 × 1200 W
Output Power Bridge @ 8 Ohms (1KHz, 0.1% THD)
2400 W
Power Supply
230V 50/60Hz
INPUT / OUTPUT
Input Sensitivity
0.77V, 1.44V
Input Impedance
20KΩ Balanced or 10KΩ Unbalanced
Output Connectors
speakON
PHYSICAL
Height
2U Chassis
Dimensions (H × W × D)
88 mm × 483 mm × 430 mm (2U)
Weight
18.5 Kgs
