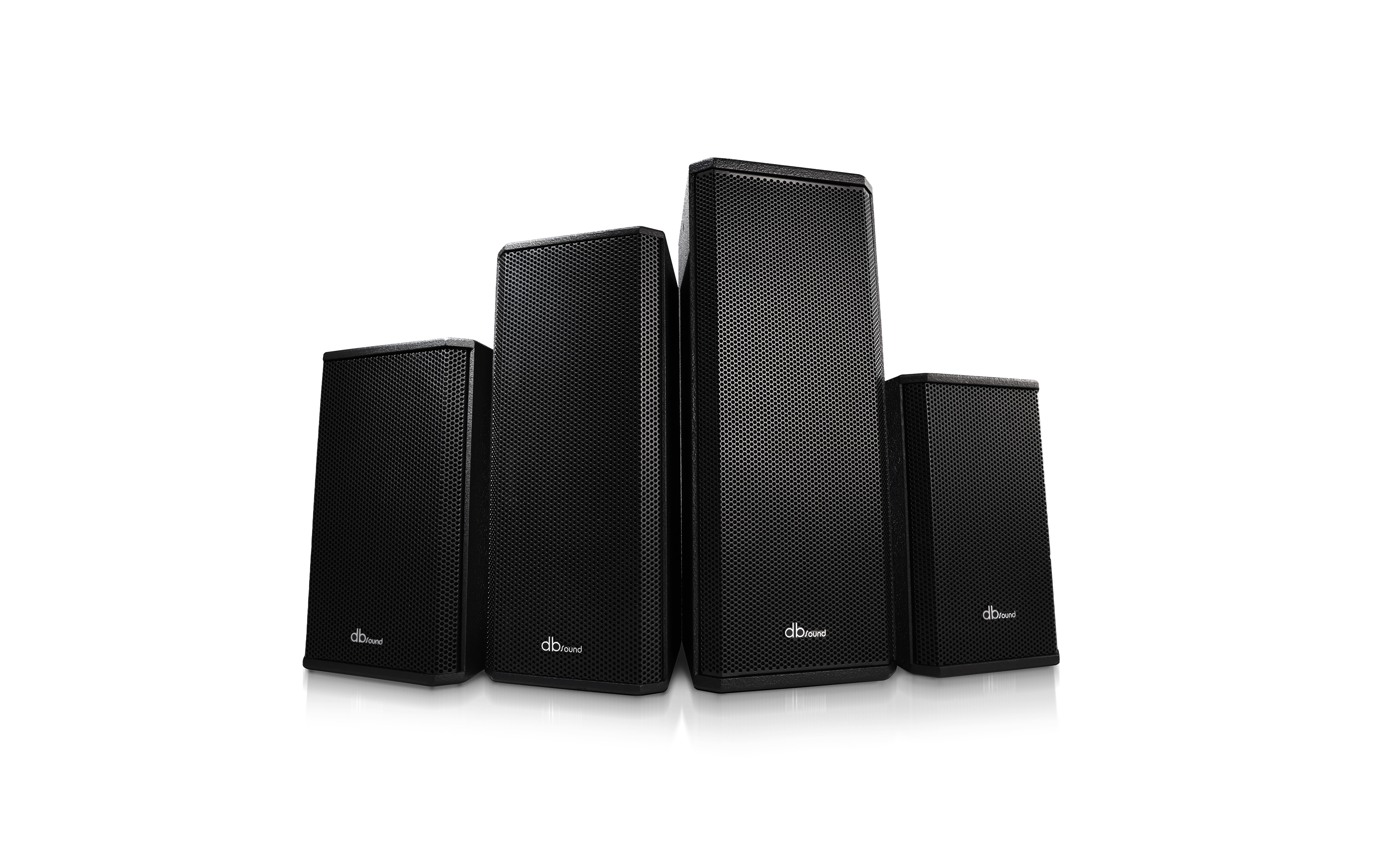

cb26-1
cb26-2
cb26-3
Gallery: CB262 - COMPACT MULTIPURPOSE SPEAKERS

Overview

Composition: 1 × CB262 Compact Speaker System

The CB262, the dual 6.5-inch model of the CB Series, offers exceptional versatility and a modular footprint as a point-source speaker built around a dual 6.5-inch low-frequency driver. A 1-inch exit high-frequency compression driver with a 35 mm voice coil and polyimide diaphragm is integrated with a hyperbolic cosine ABS horn, providing a precise 90° × 60° coverage pattern via a rotatable diffuser for optimal horizontal or vertical orientation. Housed in a meticulously built, ported birch plywood enclosure and powered by world-class Lavoce drivers from Italy, it is a flexible, high-fidelity solution for clubs, theatres, houses of worship and multimedia spaces.

Features

Plywood Construction
Plywood Construction
Vertical / Horizontal Installation
Vertical / Horizontal Installation
Point Source
Point Source
Built with Lavoce Drivers
Built with Lavoce Drivers

Applications

Club and Bar Installs
Multimedia Spaces
Houses of Worship
Conference
Theatres
Portable Sound Reinforcement

Warranty

Product Warranty

2 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
CB262
System Type
Compact Speaker System
Frequency Response
90 Hz to 20 KHz
Maximum SPL
125 dB
Nominal Impedance
4 Ohms
Directivity
90° × 60° Rotatable Diffuser
Connectors
2 × NL4 MP Connectors
POWER
Power (RMS)
300 W
Program Power (RMS)
600 W
DRIVERS
LF Driver
Dual 6.5 Inch LF
HF Driver
Single 1 Inch Exit HF Mounted on Hyperbolic Cosine ABS Horn
PHYSICAL
Enclosure
12 mm Birch Plywood
Grille
CNC Perforated Steel with Acoustical Foam Backing
Finish
Textured Black Paint
Rigging
10 x M8
Dimensions (H × W × D)
545 mm × 235 mm × 240 mm
Weight
10.50 Kgs
Optional Accessories
Optional U-Bracket for Ceiling & Wall Mounting
