Gallery: MOD12CX - MODULAR

Overview

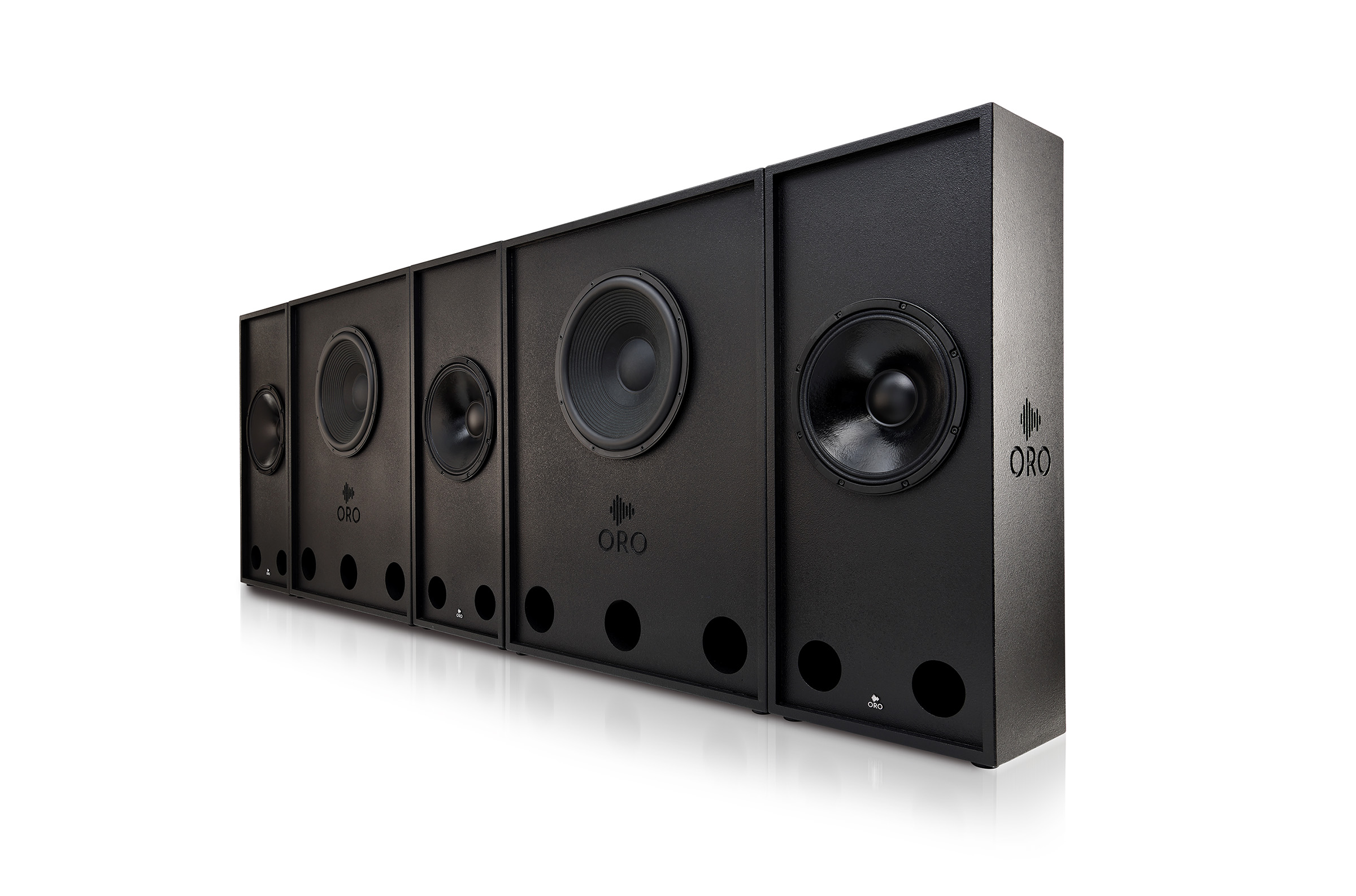

Composition: 3 × C12CX-M Cinema Stage System + 2 × C15SW-M Subwoofer System

Achieve a studio-grade cinematic experience with the refined power of the MOD12CX System. This flagship five-module solution seamlessly pairs three high-performance 12-inch coaxial LCR main speakers with two earth-shaking 15-inch ultra-low resonant subwoofers, driven by premium Lavoce and Beyma engineering. Featuring a smart modular design with matching height and depth across all units, it fits flawlessly behind acoustically transparent screens for a hidden, luxury aesthetic. Effortlessly mastering expansive rooms up to 40 feet long, it projects an 80-degree conical pattern that handles complex digital surround soundtracks with absolute precision, placing you right in the centre of the action.

Features

Ultra Low Subwoofer Frequency Response
Ultra Low Subwoofer Frequency Response
Up to Room Length of 40 Feet
Up to Room Length of 40 Feet
80° Conical Pattern
80° Conical Pattern
Modular Design
Modular Design
Powered by Lavoce Speakers
Powered by Lavoce Speakers

Applications

Dolby Atmos
DTS X
Private Cinemas

Warranty

Product Warranty

3 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
C12CX-M & C15SW-M
System Type
Cinema Stage System & Subwoofer System
Frequency Response
45 Hz to 20 KHz & 30 Hz to 1000 Hz
Sensitivity LF - C12CX-M
97 dB
Sensitivity HF - C12CX-M
105 dB
Sensitivity - C15SW-M
97 dB
Maximum SPL
132 dB & 125 dB
Impedance
8 Ohms & 4 Ohms
Configuration
2-Way Passive & Triple Ported Ultra Resonant Subwoofer
POWER
Power LF (AES) - C12CX-M
400 Watts
Power HF (AES) - C12CX-M
60 Watts
Power Handling (AES) - C15SW-M
600 Watts
Recommended Amp Power - C12CX-M
500 W (RMS) at 8 ohm
Recommended Amplifier - C12CX-M
DB Sound KS604
Recommended Amp Power - C15SW-M
900 W (RMS) at 8 ohm
Recommended Amplifier - C15SW-M
DB Sound DB1200
DRIVERS
LF Driver - C12CX-M
Single 12 Inch Paper Cone Driver with 2.50 Inch VC with an Edge Wound CCA
HF Driver - C12CX-M
Custom Designed Specific 80° Dispersion Conical Horn with 1 Inch Exit Compression Driver with a Polyimide Surround Material in a Coaxial Setup
LF Driver - C15SW-M
Single 15 Inch Paper Cone Driver with 4 Inch VC with a Rubber Surround with a Demodulation Ring with a Xmax of 10mm
PHYSICAL
Dimensions (H × W × D)
960 × 400 × 250 mm / 960 × 750 × 250 mm
Weight
22.50 Kgs / 37.00 Kgs
