Gallery: MOD12 - MODULAR

Overview

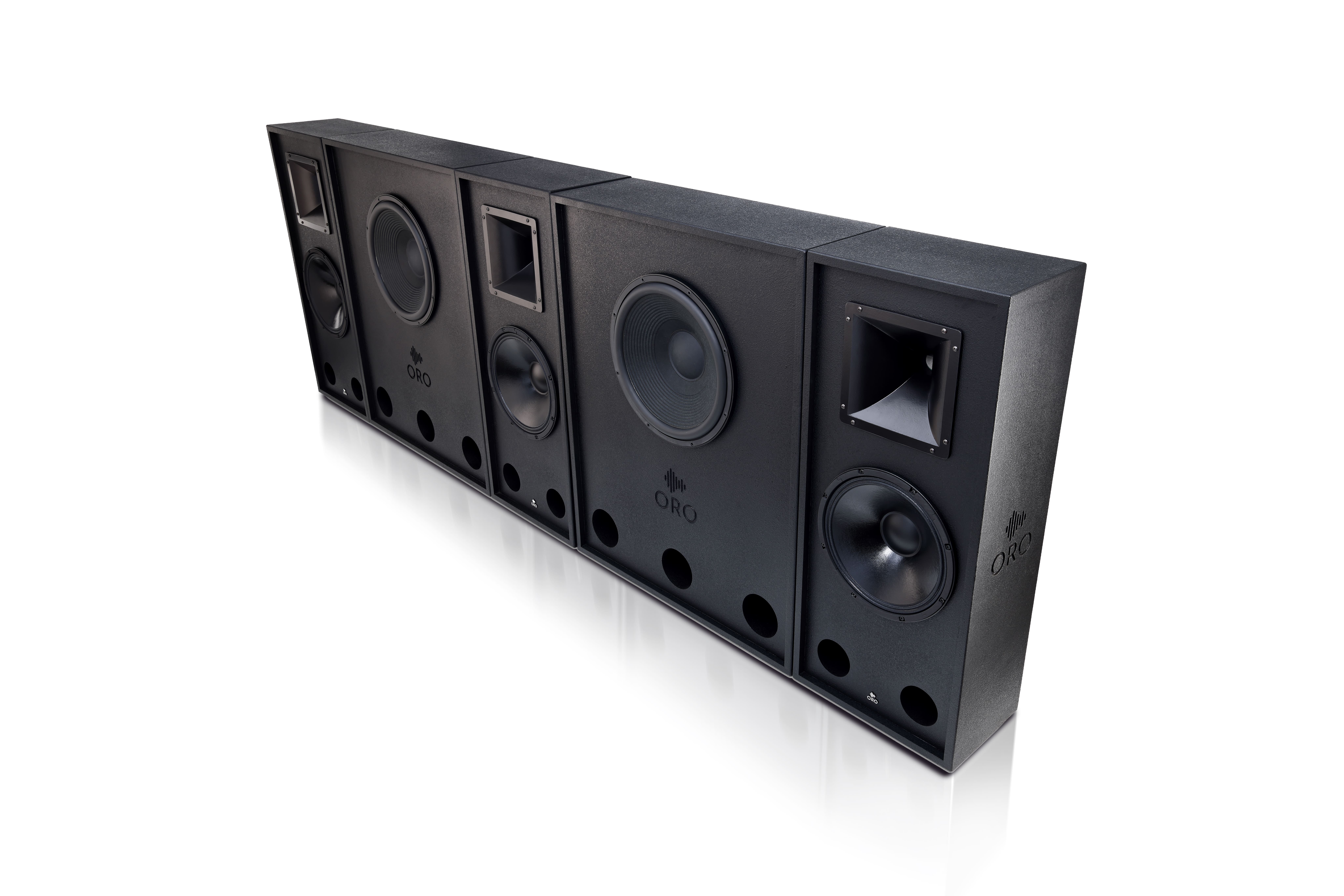

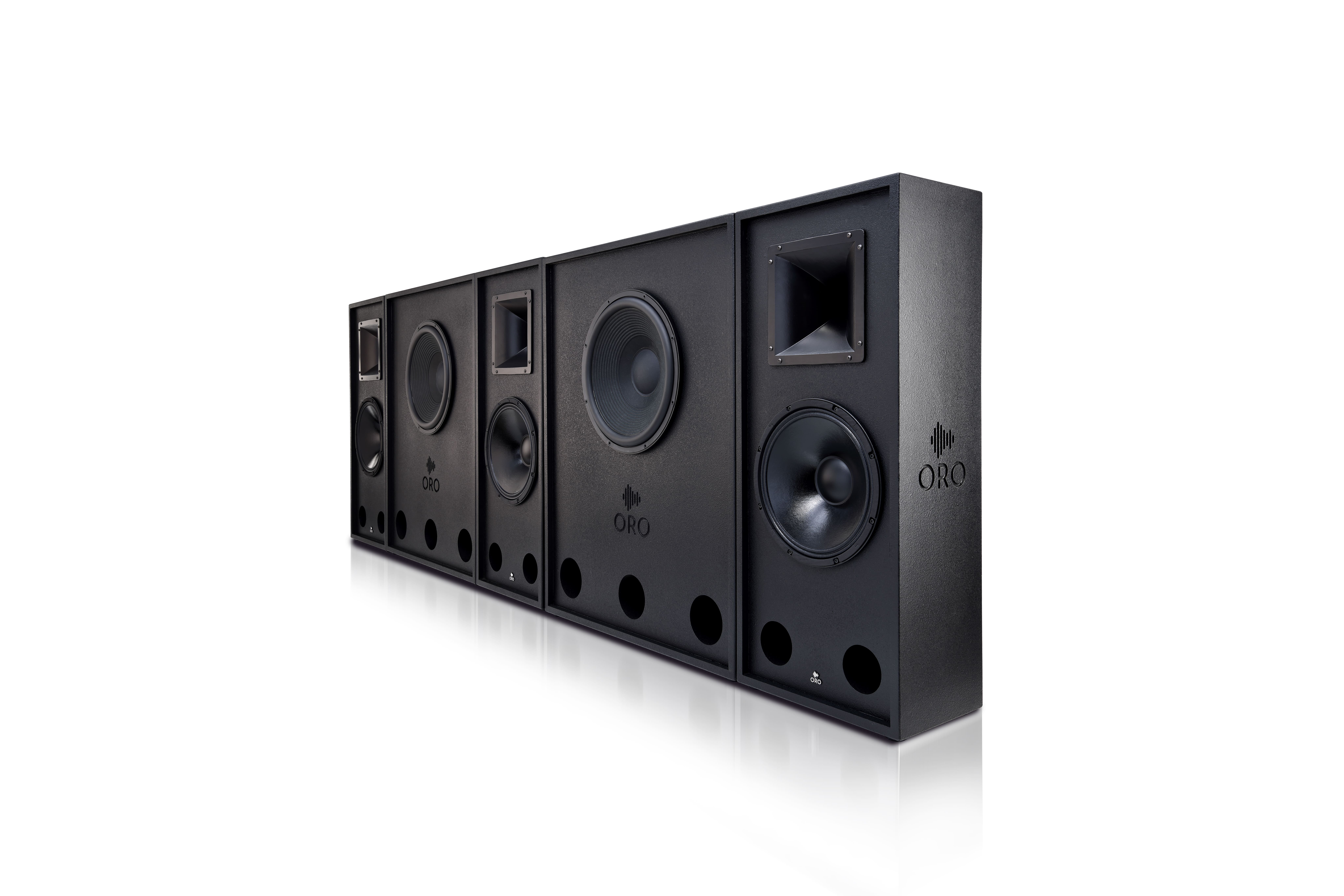

Composition: 3 × C122P-M Cinema Stage System + 2 × C15SW-M Subwoofer System

Deliver a breathtakingly grand cinematic scale with the ultimate power of the MOD12 System. This sophisticated five-module audio solution pairs three high-power 12-inch main speakers featuring a bi-amp / 2-way passive design with two earth-shaking 15-inch ultra-low resonant subwoofers, all powered by world-class Beyma drivers. Meticulously engineered with a modular footprint that shares a uniform height and depth, it integrates seamlessly behind acoustically transparent screens for a clean, luxurious theatre aesthetic. Capable of effortlessly handling expansive rooms up to 50 feet in length, its precisely designed 80-by-50-degree horn distribution replicates digital surround soundtracks exactly as they were originally recorded for uncompromised immersion.

Features

Ultra Low Subwoofer Frequency Response
Ultra Low Subwoofer Frequency Response

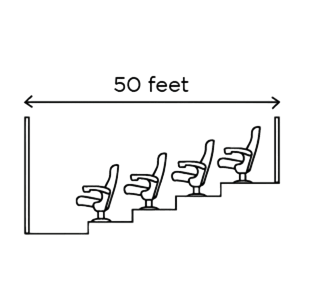

Up to Room Length of 50 Feet
Up to Room Length of 50 Feet
Horn with a Coverage Pattern of 80° by 50°
Horn with a Coverage Pattern of 80° by 50°
Modular Design
Modular Design
Powered by Beyma Loudspeakers
Powered by Beyma Loudspeakers

Applications

Dolby Atmos
DTS X
Private Cinemas

Warranty

Product Warranty

3 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
C122P-M & C15SW-M
System Type
Cinema Stage System & Subwoofer System
Frequency Response
45 Hz to 19 KHz & 30 Hz to 1000 Hz
Sensitivity LF - C122P-M
97 dB
Sensitivity HF - C122P-M
110 dB
Sensitivity - C15SW-M
97 dB
Maximum SPL
132 dB & 125 dB
Impedance
8 Ohms & 4 Ohms
Configuration
Bi-Amp / 2-Way Passive & Triple Ported Ultra Resonant Subwoofer
POWER
Power LF (AES) - C122P-M
400 Watts
Power HF (AES) - C122P-M
70 Watts
Power Handling (AES) - C15SW-M
600 Watts
Recommended Amp Power - C122P-M
600 Watts
Recommended Amplifier - C122P-M
DB Sound DB600 / KS604 / DB900
Recommended Amp Power - C15SW-M
900 W (RMS) at 8 ohm
Recommended Amplifier - C15SW-M
DB Sound DB1200
DRIVERS
LF Driver - C122P-M
Single 12 Inch Paper Cone Driver with 3 Inch VC with FEA Optimized Magnet with an Extended Controlled Displacement
HF Driver - C122P-M
Single 1.5 Inch Exit Compression Driver with Polymer Diaphragm mounted on a Custom Designed 80° by 50° Dispersion Aluminum Horn
LF Driver - C15SW-M
Single 15 Inch Paper Cone Driver with 4 Inch VC with a Rubber Surround with a Demodulation Ring with a Xmax of 10mm
PHYSICAL
Dimensions (H × W × D)
960 × 400 × 250 mm / 960 × 750 × 250 mm
Weight
25.00 Kgs / 37.00 Kgs
