Gallery: MOD10 - MODULAR

Overview

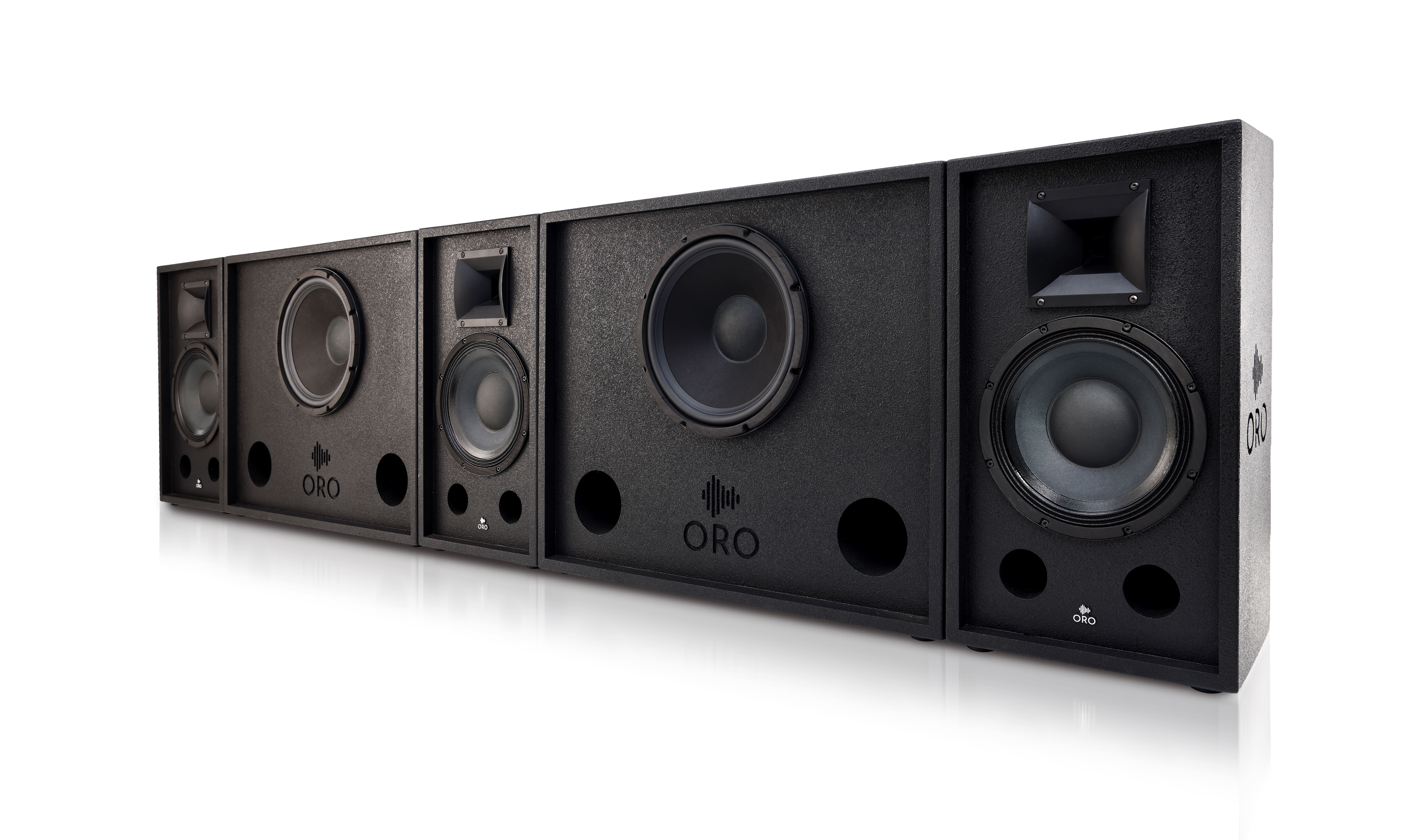

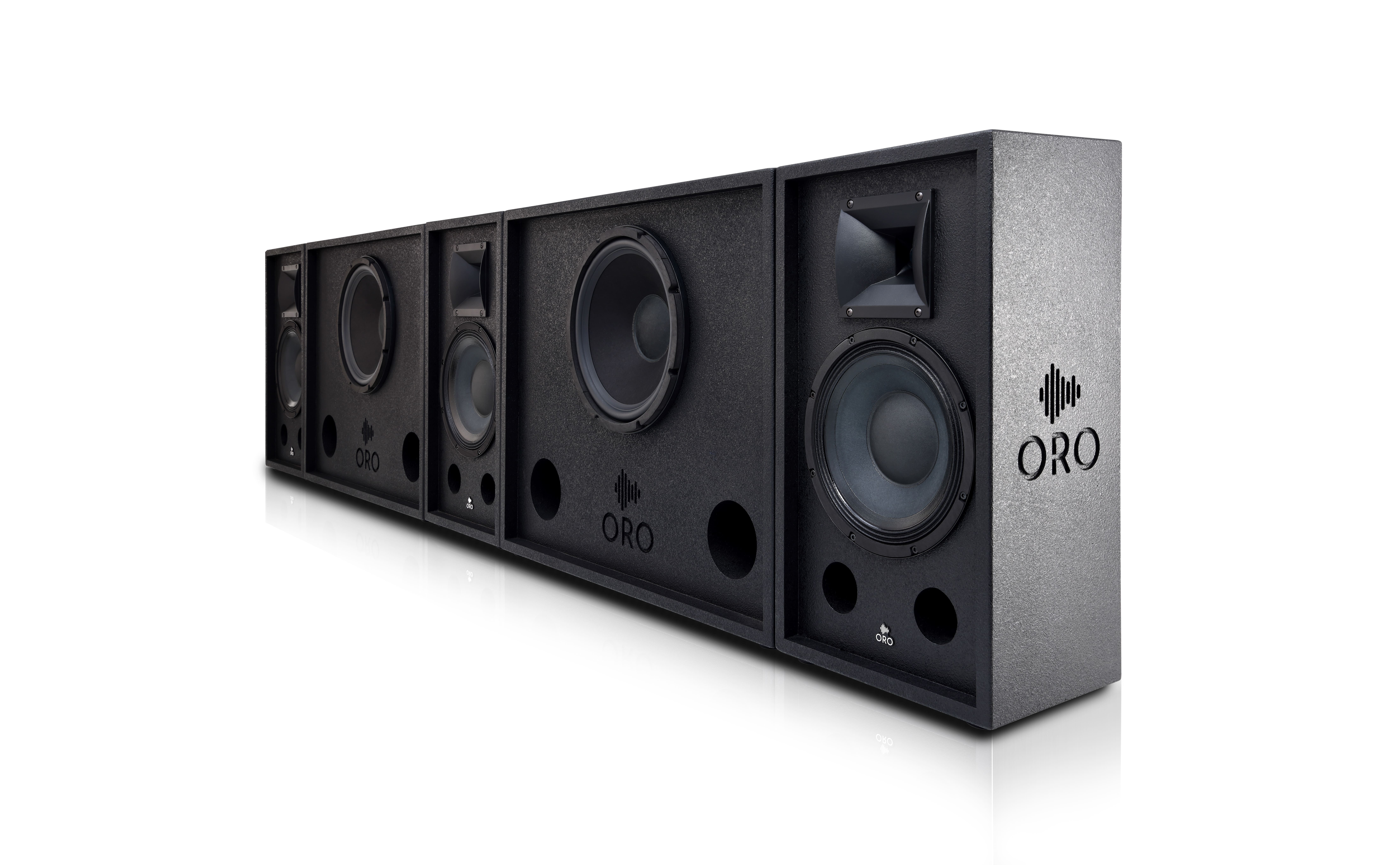

Composition: 3 × C102P-M Cinema Stage System + 2 × C12SW-M Subwoofer System

Transform your private cinema into an uncompromised theatrical venue with the elite power of the MOD10 System. This sophisticated five-module audio solution features three high-performance 10-inch LCR main speakers and two ultra-low resonant 12-inch subwoofers, all powered by world-class, Italian-made Faital Pro drivers. Engineered with a clever modular design sharing a uniform height and depth, it mounts flawlessly behind acoustically transparent screens for a pristine, hidden aesthetic. Capable of handling demanding rooms up to 27 feet in length, it flawlessly reproduces digital surround soundtracks precisely as the director intended, delivering an extraordinarily accurate and breathtakingly immersive experience.

Features

Ultra Low Resonance Subwoofer
Ultra Low Resonance Subwoofer
Up to Room Length of 30 Feet
Up to Room Length of 30 Feet
Precisely Designed Horn Coverage of 80° by 60°
Precisely Designed Horn Coverage of 80° by 60°
Modular Design
Modular Design
Powered by Faital Pro Drivers
Powered by Faital Pro Drivers

Applications

Dolby Atmos
DTS X
Private Cinemas

Warranty

Product Warranty

3 Years

Terms & Conditions Apply

Specifications

SYSTEM
Model
C102P-M & C12SW-M
System Type
Cinema Stage System & Subwoofer System
Frequency Response
50 Hz to 20 KHz & 30 Hz to 1000 Hz
Sensitivity LF - C102P-M
96 dB
Sensitivity HF - C102P-M
106 dB
Sensitivity - C12SW-M
93 dB
Maximum SPL
132 dB & 120 dB
Impedance
8 Ohms
Configuration
2-Way Passive & Dual Ported Ultra Resonant Subwoofer
POWER
Power LF (AES) - C102P-M
300 Watts
Power HF (AES) - C102P-M
50 Watts
Power Handling (AES) - C12SW-M
400 Watts
Recommended Amp Power - C102P-M
400 W (RMS) at 8 ohm
Recommended Amplifier - C102P-M
DB Sound DB600
Recommended Amp Power - C12SW-M
600 W (RMS) at 8 ohm
Recommended Amplifier - C12SW-M
DB Sound DB900
DRIVERS
LF Driver - C102P-M
Single 10 Inch Paper Cone Driver with 2.05 Inch VC with a Triple Roll Cone Surround
HF Driver - C102P-M
1 Inch Exit Compression Driver with Polyimide Diaphragm mounted on 90° by 60° Horn
LF Driver - C12SW-M
Single 12 Inch Paper Cone Driver with 2.56 Inch VC with a Rubber Surround with a Demodulation Ring with a Xmax of 14mm
PHYSICAL
Dimensions (H × W × D)
610 × 330 × 225 mm / 610 × 735 × 225 mm
Weight
13.50 Kgs / 23.00 Kgs
