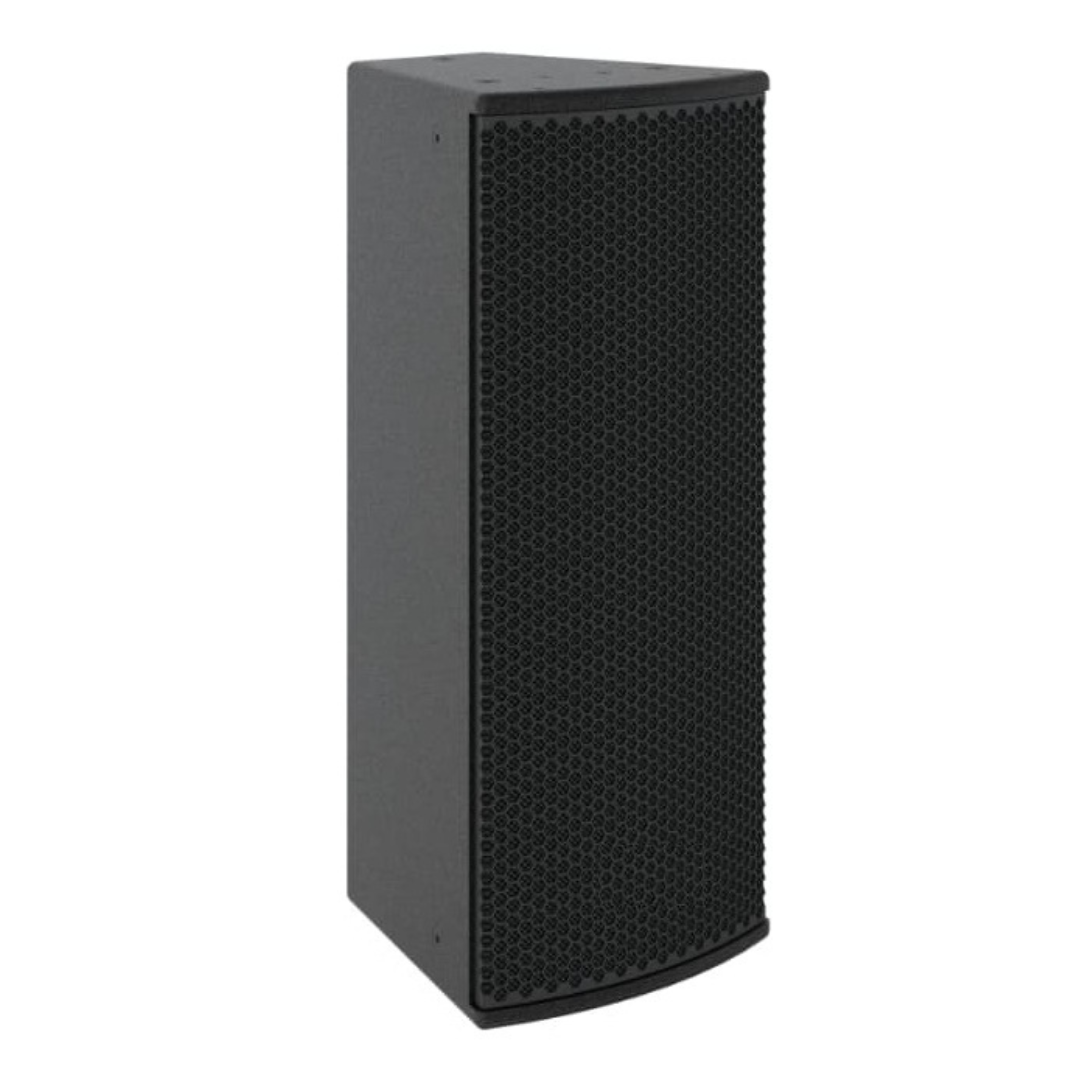

DB Sound HP210 is a 10” 2 Way Passive High Power Point Source System is a compact size
and wide versatility makes it the perfect system for fixed installation.
HP Series
Multipurpose Speaker Systems
HP Series is a full range 2 Way High Power and High SPL speaker system which has a Dual 10 inch with Single high power High Frequency Driver, finished with Birch Ply Enclosure with high quality textured paint.
HP Series
SPECIFICATIONS
| Specification | HP210 |
|---|---|
| Model | HP210 |
| System Type | High Power Point Source System |
| Coverage Pattern | 80° x 50° |
| Crossover Mode / Freq. | Passive / Above 850 Hz |
| Power (RMS) | 900W |
| Program Power (RMS) | 1800W |
| Nominal Impedance | 4 Ohms |
| Driver (LF / HF) | 2 x 10″ Lavoce LF / 1″ Lavoce HF Drivers |
| Sensitivity | 115 dB at 2.83V/1m |
| Maximum SPL | 143dB |
| Frequency Response | 70 Hz to 18 KHz |
| Rigging | 14 x M10 |
| Connectors | 2 x NL4 MP Connectors |
| Enclosure | 18mm Birch Plywood |
| Grille | CNC Perforated Steel with Acoustical Foam Backing |
| Finish | Textured Black Paint |
| Gross Weight | 25 Kgs |
| Dimensions (H x W x D) | 750 x 300 x 400 mm |
FEATURES
• High Power Point Source System
• Wide Horizontal Coverage
• Max. SPL of 143 dB
• Rotatable Horn
• Powered by Lavoce Loudspeakers
APPLICATIONS
▪ Clubs
▪ Pubs
▪ Houses of Worship
▪ Front of House
▪ Auditoriums
