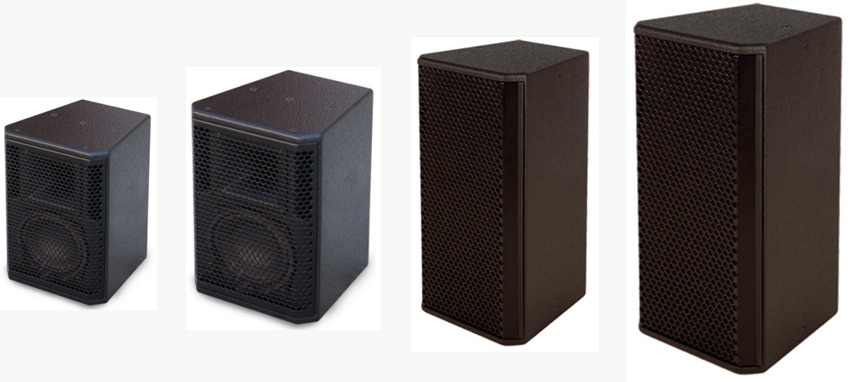

DB Sound CB Series is a multipurpose speaker system in 4 Models in a tuned enclosure. Ideal as a sonorant reinforce for all the compact systems. It can be used as a portable system or in permanent setup. The system is powered by world class Lavoce Drivers.
CB Series
2 Way Passive Compact SPeaker Systems
DB Sound CB Series is a multipurpose speaker system in 4 Models in a tuned enclosure. Ideal as a sonorant reinforce for all the compact systems. It can be used as a portable system or in permanent setup. The system is powered by world class Lavoce Drivers.
CB Series
SPECIFICATIONS
| Models | CB 26 | CB 28 | CB 262 | CB 282 |
|---|---|---|---|---|
| Power (RMS) | 160W | 200W | 350W | 400W |
| Program Power (RMS) | 320W | 400W | 700W | 800W |
| Nominal Impedance | 8 Ohms | 8 Ohms | 8 Ohms | 8 Ohms |
| System Type | Passive System | Passive System | Passive System | Passive System |
| LF Driver | 1 x 6″ | 1 x 8″ | 2 x 6″ | 2 x 8″ |
| HF Driver | 1 x 1″ Throat | 1 x 1″ Throat | 1 x 1″ Throat | 1 x 1″ Throat |
| Maximum SPL | 123dB | 125dB | 125dB | 130dB |
| Frequency Response | 90 Hz – 20 KHz | 80 Hz – 20 KHz | 90 Hz – 20 KHz | 80 Hz – 20 KHz |
| Directivity | 90° x 60° Rotatable Diffuser | |||
| Rigging | 7 x M6 | |||
| Connectors | 2 x NL4 MP Connectors | |||
| Enclosure | 12mm Birch Plywood | |||
| Grille | CNC Perforated Steel with Acoustical Foam Backing | |||
| Finish | Textured Black Paint | |||
| Dimensions (H x W x D) | 373 x 235 x 240 mm | 415 x 278 x 267 mm | 545 x 235 x 240 mm | 632 x 278 x 267 mm |
| Optional Accessories | Optional U-Bracket for Ceiling & Wall Mounting |
FEATURES
▪ Ultra- compact Light weight
▪ Versatile Sound reinforcement
▪ High Performance
▪ Rotatable Horn
▪ Multiple rigging/mounting options
▪ Powered by Lavoce Loudspeakers
APPLICATIONS
▪ Club and Bar Installs
▪ Theatres
▪ Houses of Worship
▪ Conference
▪ Multi media spaces
▪ Portable Sound reinforcement
